Hot Junction MI Thermocouple Welder
Rs. 3,00,000
/per item
Paid shipping
| Size | 585 mm (W) X 1600mm (900+700) (H) X 585mm (D) Fixture 285 mm Depth on Front Panel Bottom 700mm |
| Pre Argon Purging | 3-5 Seconds (Fixed) |
| Purging | Argon (Not in our Scope of Supply) |
| Thermocouple Size | 1-6 mm thick |
| Voltage Setting | Increase / Decrease by Switches |
| Torch Contact Indication | 10 mm Bright RED LED |
| Power Supply | 230 Volts +/- 10% AC, 50 Hz. 1 phase |
| Operation Height | Suitable for Normal operation |
| Charging Voltage | 30 volts to 900 volts continuously variable |
| Adjustments | X-Y movements by fine screw arrangement. Vertical by Lockable Screw |
| Energy | 2250 Joules 450 + 900 + 900 (Through Switch) |
| Indication | 3 Digital, Digital Indication of voltage can be calibrated in terms of energy |
| Model No | CDTIG 2250 |
| Post Argon Purging | 3-5 Seconds (Fixed) |
| Minimum Order Quantity | 1 Piece |
Get Latest Price

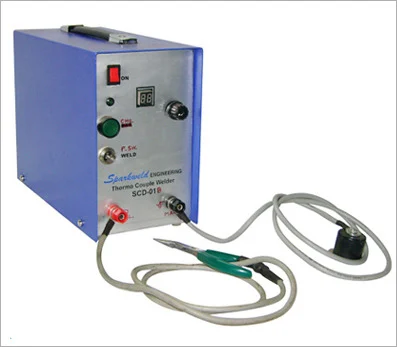

Thermocouple Welder
Rs.
/per item
Paid shipping
Product Details:
| Model | SCD - 01 E |
| Voltage Rating | 100~120V or 220~240V AC |
| Store Energy Output | 0-to 60 joules |
| Cycle time | Charging time at max. energy less than 3 sec. |
| Wire Gauge | (0.5 ~ 1.1 mm/0.020" ~ 0.043") |
| Thermocouple Type | Suitable for type K/J/E/T/N/R/S/B |
| Weld Cycle | Min. 5 to 10 weld / min |
| Energy indicator | LED display to indicate charging status |
| Weld Trigger | Foot switch with 2 Met. Cable. |
| Suitable use for | Manufacturer / Workshop / Laboratory / Engineering Dept./ |
| Dimension | 220(W) x 120(H) x 200(D) mm |
| Weight | 5 Kgs / 11 IBS |
Get Latest Price
