Vertical Machining Center Vertical Machining Center
CNC Double Column Machining Center CNC Double Column Machining Center
CNC Machining Centre CNC Machining Centre
Double Column Machine Double Column Machine
5 Axis Machining Center 5 Axis Machining Center
Precision Machining Centers Precision Machining Centers
Horizontal Machining Centers Horizontal Machining Centers

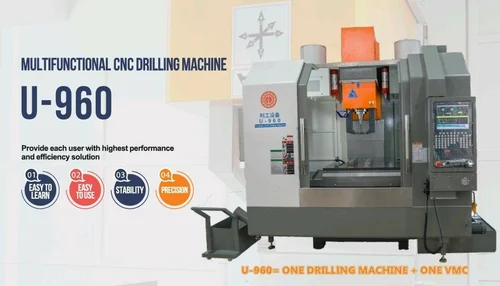

Vertical Gun Drilling Machine + VMC in thane
Rs. /per item Get Latest Price
Paid shipping

Number of Axis 3 Axis
Spindle Speed (RPM) 5001 - 10000 RPM
X-Y-Z Axis Travel 900/650/600
Spindle Power 15 kW
Model U-960
Applicable Industry Aerospace, Automobile, Die & Mould, Defence, Medical, Fluid Power
Job Material Aluminium, Cast Iron, Steel, Titanium, Graphite
Spindle Taper BT40
Table Working Surface Size 1000x600
Table T-Slot Size 5/18/100
Table Maximum Load 700
Distance from Spindle Nose to Table Surface 140-790
Rapid Traverse Rate (X/Y/Z Axis) 12000/12000/12000
Cutting Feed Rate 1-10000
Maximum Tool Size 1.5mm - 30mm
Positioning Accuracy +/- 0.008
Repeatability Accuracy +/- 0.008
Machine Weight 5500kg
Machine Dimension 2560*3300*3000
Machine Condition New
Minimum Order Quantity 1 Number

Read More...

Jyoti 430 Vertical Machining Center
Rs. 3,90,000 /per item Get Latest Price
Paid shipping

Number of Axis 4 Axis
Spindle Power 7.5 kW
Model VMC-430
Spindle Taper 40
Table Working Surface Size 300 x 600mm
Table T-Slot Size 3 x 14 x 100mm
Table Maximum Load 200Kgf
Distance from Spindle Nose to Table Surface 600mm
Rapid Traverse Rate (X/Y/Z Axis) 40m/min
Cutting Feed Rate 10m/min
Maximum Tool Size 80mm
Positioning Accuracy 0.010mm
Repeatability Accuracy 0.005mm
Machine Weight 3300Kg
Machine Dimension 1725 x 2250 x 2600mm
Machine Condition Used
Frequency 60Hz
Voltage 240V

Read More...

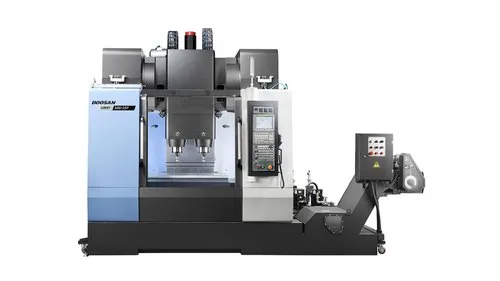

Doosan DMP 500/2SP Two Spindle Vertical Machining
Rs. /per item Get Latest Price
Paid shipping

Brand Doosan
Model Name/Number DMP 500/2SP
X Axis Rapid Traverse 40 m/min
Max. Spindle Speed 12000 r/min
Max. Spindle Power 18.5/11 kW
Z Axis Rapid Traverse 36 m/min
Z Axis Travel distance 600 mm
X Axis Travel distance 1040 mm
Y Axis Travel distance 520 mm
Y Axis Rapid Traverse 40 m/min

Read More...

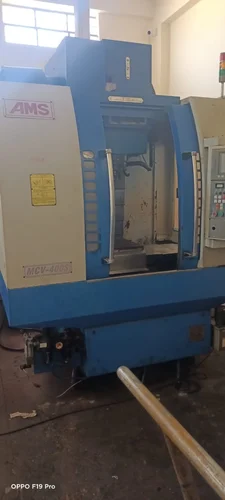

AMS MCV 400 Vertical Machine Center
Rs. 10,00,000 /per item Get Latest Price
Paid shipping

Number of Axis 3 Axis
Spindle Speed (RPM) Up to 2000 RPM
Spindle Power 5.5 kW
Spindle Speed(RPM) 6000
Job Material Steel, Aluminium, Cast Iron

Read More...
