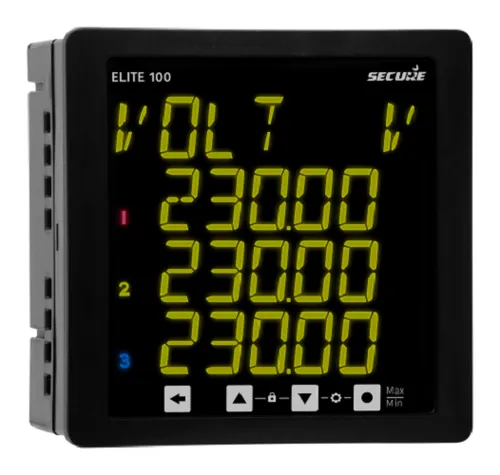

3 Phase Lcd Secure make Multifunction Meter

Rs. 3,200 /per item Get Latest Price

Paid shipping

Get Quote

Rs. 11,577 /per item Get Latest Price

Paid shipping

Model Name/Number	Rish Master 3440i
Voltage	10~ 120% of rated value
Relative Humidity	0~90% non condensing
Brand	Rishabh
Temperature coefficient	0.025%/ Degree C - Voltage (50~ 120% of rated value)
Response time to step input	1 sec approx.
Current Range	10~100% of Nominal Value.
Auxiliary supply voltage	Rated Value +-1%
Input frequency	50 Hz +-2%
Pollution degree	2
Voltage Range	50~100% of Nominal Value.
High Voltage Test	2.2 kV AC, 50Hz for 1 minute between all electrical circuits
Vibration	10~ 55 Hz, 0.15mm amplitude
Enclosure	IP54 (front face only)
Shock	15g in 3 planes
Warm up time	Minimum 3 minute
Operating temperature	-10 to +55 Degree C
Storage temperature	-20 to +65 Degree C
Reference temperature	23 +/- 2 Degree C
Frequency	40~70 Hz
System CT secondary values	1A programmable on site.
System CT primary values From	1A * (for 1 or 5 Amp )
Nominal input current	1A / 5A AC RMS.
Max continuous input voltage	120% of rated value
Nominal input voltage (AC RMS)	Phase -Neutral 57.7 - 346 VL-N,Line-Line 100 - 600 VL-L
System PT primary values	100VLL programmable on site
Max continuous input current	120% of rated value
AC /DC Auxiliary Supply	60 VAC /DC OR 12 - 60 VAC /DC
Auxillary Supply burden	< 6.5 VA approx.
Current	5 ~ 120% of rated value
Nominal input current burden	<0.3 VA approx. per phase
Nominal input voltage burden	< 0.35 VA approx. per phase
AC Auxiliary supply frequency range	45 hz
Power Factor	0.5 Lag ~ 1~0.8 Lead
