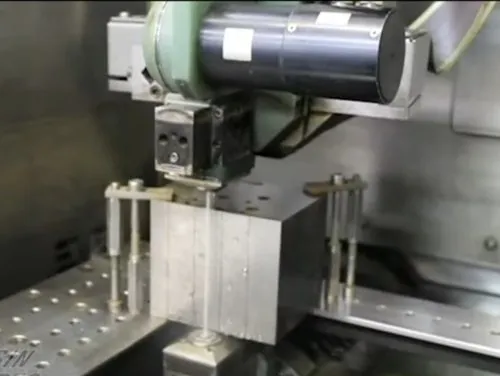

3-Axis Cnc Wire Edm Job, Aluminum
Rs.
/per item
Get Latest Price
Paid shipping
| Machining Axis | 3-Axis |
| Expertise in Material Type | Aluminum |
| Machine Tolerance | +/- 0.1% |
| Expertise in Industry | Automobiles |
Get Latest Price

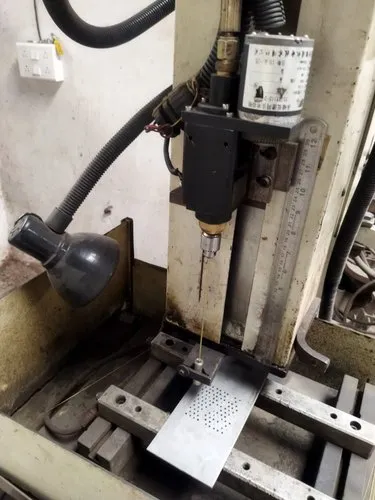

EDM Drill Machine Job Work
Rs.
/per item
Get Latest Price
Paid shipping
| Machine Type | Automatic |
| Material | Mild Steel |
| Capacity | 99% |
| Brand | ELECTRONICA |
| Voltage | 240 |
| Country of Origin | Made in India |
Get Latest Price
EDM Wire Cut Machining Service, Material - Mild Steel (MS)
Rs.
/per item
Get Latest Price
Paid shipping
| Expertise in Material Type | Mild Steel (MS) |
| Machine Tolerance | +/- 5 Microns |
| Industry Experience | 28 Years |
| Minimum Order Quantity | 1 Hour |
| Certification | ISO 9001:2015 |
| Max. Work Piece Weight | 200 kg |
| Job Work Dimension (L*B*H) | 350*250*200 mm |
| Number of Machines | 1 Machine |
| Transport Facility | Not Available |
| Inhouse Tooling Facility | Available |
| Weight | 6175 lbs |
| Architecture | Compact machine with fixed table |
| Axes Controlled | X,Y,Z and C simultaneously |
| Volume of reservoir | 120 gal |
| Tank Dimension | 31.5 x 21.65 x 14.56 inch |
| Tank Type | Drop Tank |
| Filter Type | 4 paper cartridges |

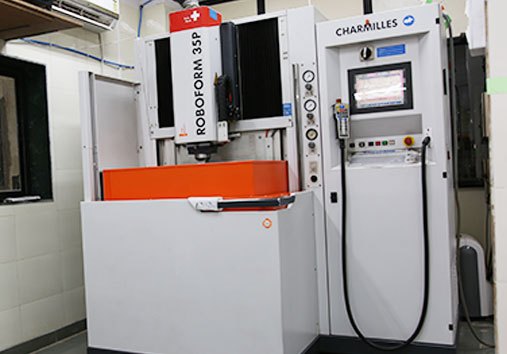

| Machine Brand | Agie Charmilles |
| Machine Model | Roboform 35P |
| Table Dimension | 19.68 x 15.75 inch (W x D) |
| Distance between table and chuck | 5.9 to 17.7 inch |
| Dimension | 74.8 x 66.1 x 92.5 inch (W x D x H) |
| Disk Drive | 3.5 DOS,1.44 MB |
| Axes Travel | 13.78 x 9.84 x 11.81 inch |
| Screen | CRT 14 inch color |
| Max Inertia | 682 pounds-sq.-inch |
| Max Workpiece Dimension | 30.7 x 15.75 x 11.81 inch |
| Max Electrode Weight | 110 lbs |
| Input Supply | 440V,3 Phase,50/60 Hz |
| Service Type | Offline |
| Generator Type | Isopulse |
| Max Workpiece Weight | 1100 lbs |
| Measurement Resolution | 0.001 degree |
| Standard Machining Current | 64A |
| System for movement measurement | Linear glass scales |
| Location | Onsite |
| Remote Control | Standard |
| Programmable Dielectric Level | 3.94 to 13 inch |
| T Slot Dimension | 0.472 (3) inch |
