Roll To Roll Lamination Machine Roll To Roll Lamination Machine
Solar Laminating Machine Solar Laminating Machine
Pouch Laminator Pouch Laminator
Foam Laminating Machine Foam Laminating Machine
Automatic Flute Laminating Machine Automatic Flute Laminating Machine
Paper Plate Lamination Machine Paper Plate Lamination Machine
Extrusion Coating Lamination Plant Extrusion Coating Lamination Plant
Thermal Lamination Machine Thermal Lamination Machine

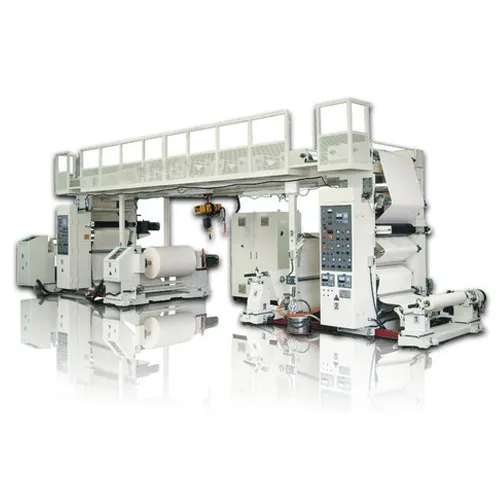

Wet And Dry Lamination Machine
Rs. 35,00,000 /per item Get Latest Price
Paid shipping

Brand Sanmach
Automation Grade Automatic
Max. Laminating Width 500mm-2000mm
Machine Capacity 70 tons/month
Power Consumption 36 kW
Material Mild Steel
Speed 250 m/min
Country of Origin Made in India



  • Excellent functionality
  • Less power consumption
  • Hassle free operations

Read More...

Semi Automatic Adhesive Dry Lamination Machine
Rs. 32,00,000 /per item Get Latest Price
Paid shipping

Laminating Speed 120 meter/min
Automation Grade Semi Automatic
Number Of Rollers 3
Laminating Film BOOP , LDPE , BOPP METALLZE , PP , POLYESTER , PAPER , ALUMINIUM FOIL , PET
Warranty 1 Year
Film Core 76 MM
Pressure Adjustment Pneumatic
Speed Control Adjustable
Temperature Control Variable
Country of Origin Made in India

Read More...

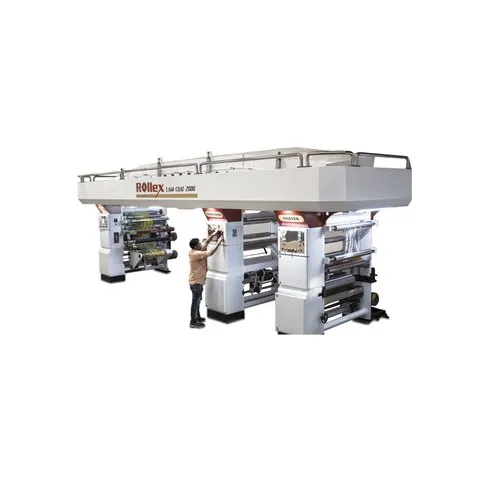

Rollex Lemi-Cot-2000 Dry Lamination Machine
Rs. 70,00,000 /per item Get Latest Price
Paid shipping

Brand Rollex
Weight 19000 kg
Oven Heating Power 30 Kw
Oven Heating Length 8000 mm
Total Power 70 Kw
Dimension H x W x L 3385 X 2746 X 9276 mm
Core Diameter 76mm / 3" & 152 mm / 6"
Speeds At a Limit of +- 50mm
6 Drive System AC Motor
Oven System Electric Heating Type
Laminating Width 1000 mm
Model LEMI-COAT-2000
Unwind web width 1050 mm
Maximum Mechanical Speed 200 MPM
Maximum Diameter of Material 800 mm (Unwind & Rewind)
Inside Diameter of Roll Core 76 / 3" and 152 / 6"



  • Heavy Duty Frame Structure Design
  • Touch Screen Panel with Graphic, of various Parameters & Interlock Menus to set Various Production data. Graphical Menu is easy to understand & user-friendly
  • PLC Controlled Machine
  • Digital Edge Guide of which would continuously guide the web at all the speeds at a limit of ±50mm.
  • Pressure Roll with liner guide ways System
  • Doctor Blade fast change over and Pneumatic operated with multi angle and left right shuttle.
  • Heavy Duty Frame Structure Design
  • Law friction dynamic balance guide roll.
  • Low friction ball screw for side & length linner compensator.
  • Pneumatically Lay on Roll with counter balance.
  • The Unwinder is an Integrated Shaft less type. It shall be capable of clamping the reels of Core Diameter of 76mm / 3” & 152 mm / 6” with Easy and Changeover of Reel.
  • Unwinder 1, Unwinder-2 and Rewinder are Shaft less.
  • 4 segment pneumatic open oven tunnel, temperature control every segment intelligently for various material and energy-saving.
  • Main Drive, Unwind-1, Unwind-2, Rewind, Dryer Roller. : AC Motor

Read More...
