Brand | ZENITH |
Spindle Speeds | Variable |
Disc Dia. Capacity | 105 - 350 mm |
Disc Thickness Capacity | 75 mm |
Drum Dia. Capacity | 135 - 600 mm |
Drum Depth Capacity | 250 mm |
Country of Origin | Made in India |
DISC : | ||
Facing Capacity on diameter Max. | mm | 458 |
Facing capacity on width Max. | mm | 45 |
Total travel of the tool (cross wise) | mm | 140 |
Number of automatic cross feeds | ||
available (for roughing & finis~iing) | 2 | |
DRUM : | ||
Drum skimming capacity on dia | mm | 152.4 to 660.4 |
Maximum tool slide travel | mm | 205 |
Each division of cross slide micrometer takes a cut of |
||
per side | mm | 0.025 |
on dia. | mm | 0.05 rpm |
Spindle Speeds | mm | 120/80/54 |
Self feed travel/minute | mm | 24/16/10.8 |
GENERAL : | ||
Main Motor | HP | 1 |
Weight of the machine (appx.) | Kgs | 460 |
Shipping size in L x B x H (appx.) | cm | 170 x 92 x 76 |
Brand | ATS ELGI |
Max Cutting Depth | 0.8mm/bit |
Incremental cutting scale | 0.05mm/click |
Driving Axle Rotation Speed | 100 rpm |
Max. Brake Disc thickness | 39 mm |
Country of Origin | Made in India |
Brake Lathe
Rs. /per piece | Paid shippingNew Delhi
1st Floor, Plot No - 23, Kh No 11/15-16, Ambey Garden, Libaspur Extn Village Libaspur, North West Delhi, New Delhi-110042, Delhi, India
Brake Disc & Drum Lathe Machin
Rs. /per piece | Paid shippingMumbai
No. 20, Ambalal Doshi Marg, Hamam Street, Fort, Opp. BSE Bombay Stock Exchange, Mumbai-400001, Maharashtra, India
Car Brake Lathe
Rs. /per piece | Paid shippingMumbai
,B-211,Govandi Station Road,Arjun Centre,Deonar, Mumbai-400088, Maharashtra, India

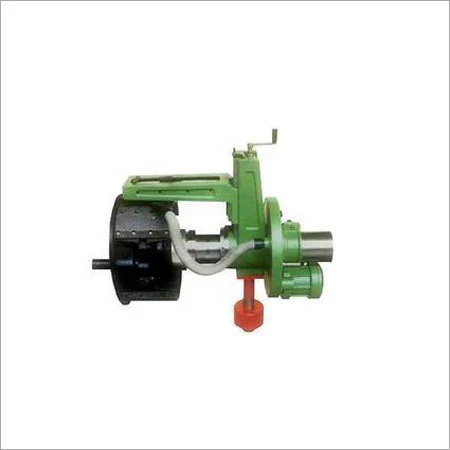

Brake Shoe Lathe
Rs. /per piece | Paid shipping
Post Box No. 3684, No. 15, Avantikabai Gokhale Street, Avantikabai Gokhale Street Mumbai - 400004, M
On car brake Lathe
Rs. 4,68,000 /per piece | Paid shippingPune
Ground Floor, Sr No. 677, Pratik Heights,, Behind Hotel Vishwavilas,, Landewadi Bhosari, Pune-411039, Maharashtra, India
