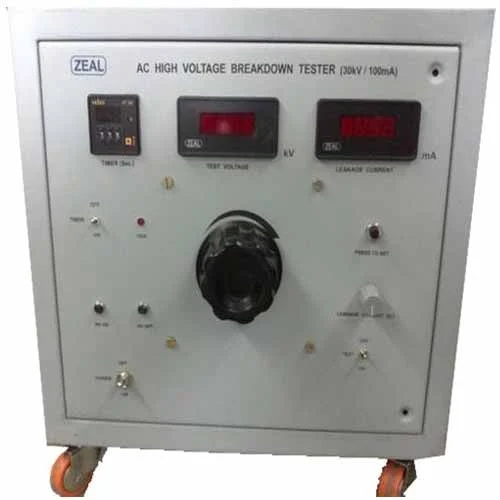

Zeal AC High Voltage Breakdown Tester, for Laboratory
Brand | Zeal |
Usage | Industrial, Laboratory |
Power Source | Electric |
Operating Temperature | 0 to 45 Degree C |
I deal only | New |
Voltage | 220 V |
Minimum Order Quantity | 1 PIECE |
Feature
Brand | Zeal |
Usage | Industrial, Laboratory |
Power Source | Electric |
Operating Temperature | 0 to 45 Degree C |
I deal only | New |
Voltage | 220 V |
Minimum Order Quantity | 1 PIECE |
Description
AC High Voltage Breakdown Tester is designed in a manner to be used in industries like railway, electricity board, defense, communication center and R & D unit. This is fabricated by using premium grade of raw materials that is meant for measuring high voltage insulation of different instruments.
Specifications
Technical Specifications
- Make : Zeal
- Model : ZMHV
- Power : 230VAC ±10%, 50 Hz
- Indications : Trip, HV On, HV Off
- Accessory : HV Test probe
- Metering : 3 1/2 digits Digital kV and mA meter
- Accuracy : kV: 1.5 % of FS ± 2 dgt,
mA: 1.5% of reading ± 2 dgt, Time: ±0.5 second - Timer (programmable) : 0 to 999 second with timer ON/OFF switch. Timer : 0 to 999 second with timer ON/OFF switch
- Trip Current setting : by press to set switch & potentiometer, using digital mA meter
