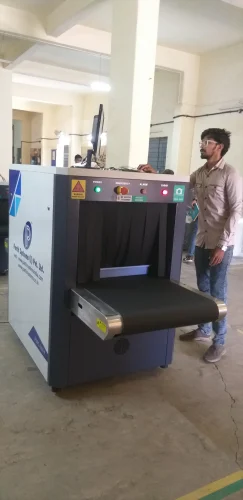

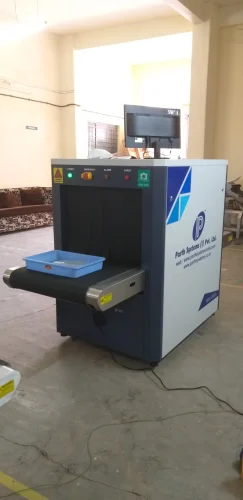

X Ray Inspection System 6040
| Metal Detector Type | X Ray Baggage Scanner |
| Usage/Application | Malls, Corporate Offices, Banks, Meseums, Factories, Metrol/Railway Stations, Railway Stations, etc. |
| Alarm Mode | Sound |
| Brand | PSIPL |
| Model Name/Number | PSIPL6040 |
| Penetration | Typical 12mm steel, Guarantee 10mm steel |
| Speed (m/s) Conveyor | 0.22 |
| X-Ray Generator | 100 KV, oil cooling, from bottom to top |
| Tunnel Size (mm) Conveyor | 600(L) x 400(W) |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Feature
| Metal Detector Type | X Ray Baggage Scanner |
| Usage/Application | Malls, Corporate Offices, Banks, Meseums, Factories, Metrol/Railway Stations, Railway Stations, etc. |
| Alarm Mode | Sound |
| Brand | PSIPL |
| Model Name/Number | PSIPL6040 |
| Penetration | Typical 12mm steel, Guarantee 10mm steel |
| Speed (m/s) Conveyor | 0.22 |
| X-Ray Generator | 100 KV, oil cooling, from bottom to top |
| Tunnel Size (mm) Conveyor | 600(L) x 400(W) |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Description
Product Highlight • Multilingual operation• Automatic built in test & self diagnosis• Secure access key• Uninterruptable power supply (ups)• Threat alert & material classification• Auto archiving• Energy saving design• One key turn off• Drugs & explosives inspection• Indication of the date & time• Baggage Counter
Product Detail • Unit Weight : 550 Kgs• Unit Size : 1939.64(L) x 900(W) x 1415(H) MM• Tunnel Size (mm) Conveyor : 600(L) x 400(W)• Speed (m/s) Conveyor : 0.22• Height (mm) Conveyor Max : 700• Load (Kgs.) : 150• Penetration : Typical 12mm steel, Guarantee 10mm steel• Wire Resolution : Typical AWG 40, Guarantee AWG 38• X-Ray Dosage each inspection : Typical 2.5/-IGy/h, guarantee 3.5 /-IGy/h• Boundary Leakage : Typical 1.0/-IGy/h, guarantee 1.5 /-IGy/h• Power Consumption : Max 0.8 KVA• SIN Ration : <60dB• Film Safety : Guarantee ASAIISO 1600 Film
Configuration • X-Ray Generator : 100 KV, oil cooling, from bottom to top • Keyboard : Special • Operating System : Linux
Software – • Image Enhancement : 1-64 times enlargement continuity, color / BW, negative, high/low penetration, organic/inorganic stripping, general enhancement & pseudo color, etc.• Image Recall : All preceding images recallable, retrieval• Image Archive : Up to 1,00,000 images stored automatically, enable transferring to USB disk & converting to JPG, BMP, XF, PNG, TIFF, GIF six formats • Other Functions : Time/Date display, counters, user management, system-on/X-ray on timers, power on self test, built in diagnostic facilities, dual-direction scanning, system log, system standby & stimulant training, ADS, etc.• Network Application : Multiple remote applications available based on Ethernet LAN & windows platform, such as image centralized storage & identify, recheck workstation & network TIP, etc (Optional)
Operating Environment – • Operation temperature / Humidity :0 to 45 Degree C/ 5%-95% (non- condensing)• # Storage temperature / Humidity : -40 – 70 Degree C / 5%-95% (non- condensing)• Operation Power : 220 VAC (±10%) 50±3Hz
