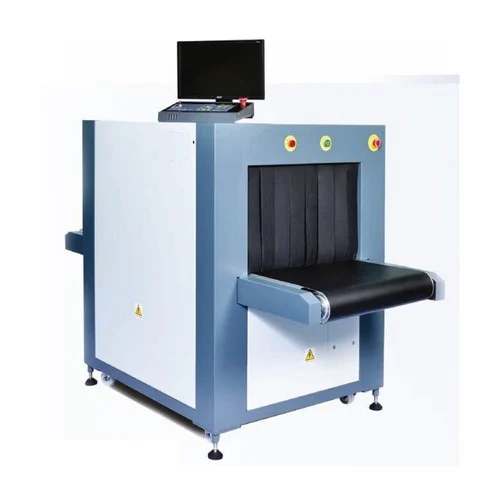

X Ray Baggage Scanner System
| Metal Detector Type | X Ray Baggage Scanner |
| Tunnel Size | 600 x 400 mm |
| Usage/Application | Hotel, Bank, Corporate offices, Malls, Movie Theatre, High Security Area, etc. |
| Model Name/Number | PSIPL6040A |
| Brand | PSIPL |
| Alarm Mode | Sound |
| Battery Charging Type | Plugged in Charging |
| Humidity | 5%-95% (non-condensing) |
| Operation Temperature | 0 to 45 Degree C |
| Operation Power | 220 VAC (+-10%) 50+-3Hz |
| Speed Conveyor | 0.22 m/s |
| Storage Temperature | -40 - 70 Degree C |
| Unit Size | 1939.64(L) X 900(W) X 1415(H) mm |
| Tunnel Size Conveyor | 600(L) x 400(W) mm |
| Unit Weight | 550 Kgs |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Feature
| Metal Detector Type | X Ray Baggage Scanner |
| Tunnel Size | 600 x 400 mm |
| Usage/Application | Hotel, Bank, Corporate offices, Malls, Movie Theatre, High Security Area, etc. |
| Model Name/Number | PSIPL6040A |
| Brand | PSIPL |
| Alarm Mode | Sound |
| Battery Charging Type | Plugged in Charging |
| Humidity | 5%-95% (non-condensing) |
| Operation Temperature | 0 to 45 Degree C |
| Operation Power | 220 VAC (+-10%) 50+-3Hz |
| Speed Conveyor | 0.22 m/s |
| Storage Temperature | -40 - 70 Degree C |
| Unit Size | 1939.64(L) X 900(W) X 1415(H) mm |
| Tunnel Size Conveyor | 600(L) x 400(W) mm |
| Unit Weight | 550 Kgs |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Description
Product Highlight:
- Multilingual operation
- Automatic built in test & self diagnosis
- Secure access key
- Uninterruptable power supply (ups)
- Threat alert & material classification
- Auto archiving
- Network-ready
- Energy saving design
- One key turn off
- Drugs & explosives inspection
- Indication of the date & time
- Baggage Counter
Technical Specification:
- Height (mm) Conveyor Max 700
- Load (Kgs.) 150
- Penetration Typical 12mm steel, Guarantee10mm steel
- Wire Resolution Typical AWG 40, Guarantee AWG 38
- X-Ray Dosage each inspection Typical 2.5/-IGy/h, guarantee 3.5 /-IGy/h
- Boundary Leakage Typical 1.0/-IGy/h, guarantee 1.5 /-IGy/h
- Power Consumption Max 0.8 KVA
- SIN Ration <60dB
- Film Safety Guarantee ASAIISO 1600 Film
Configuration:
- X-Ray Generator 100 KV, oil cooling, from bottom to top
- Computer Monitor CPU G1610 2.6G Hard Drive 500 G
- Operation Table High Resolution Color, LCD Accord, 17 Inch
- Keyboard Special
- Operating System Linux
Software:
- Image Enhancement 1-64 times enlargement continuity, color /BW, negative, high/low penetration,organic/inorganic stripping, general enhancement & pseudo color, etc.
- Image Recall All preceding images recallable, retrieval
- Image Archive Up to 1,00,000 images stored automatically,enable transferring to USB disk &converting to JPG, BMP, XF, PNG, TIFF,GIF six formats
- Other Functions Time/Date display, counters, user management, system-on/X-ray on timers,power on self test, built in diagnostic facilities, dual-direction scanning, system log, system standby & stimulant training,ADS, etc.
- Network Application Multiple remote applications available based on Ethernet LAN & windows platform, such as image centralized storage& identify, recheck workstation & network TIP, etc (Optional).
