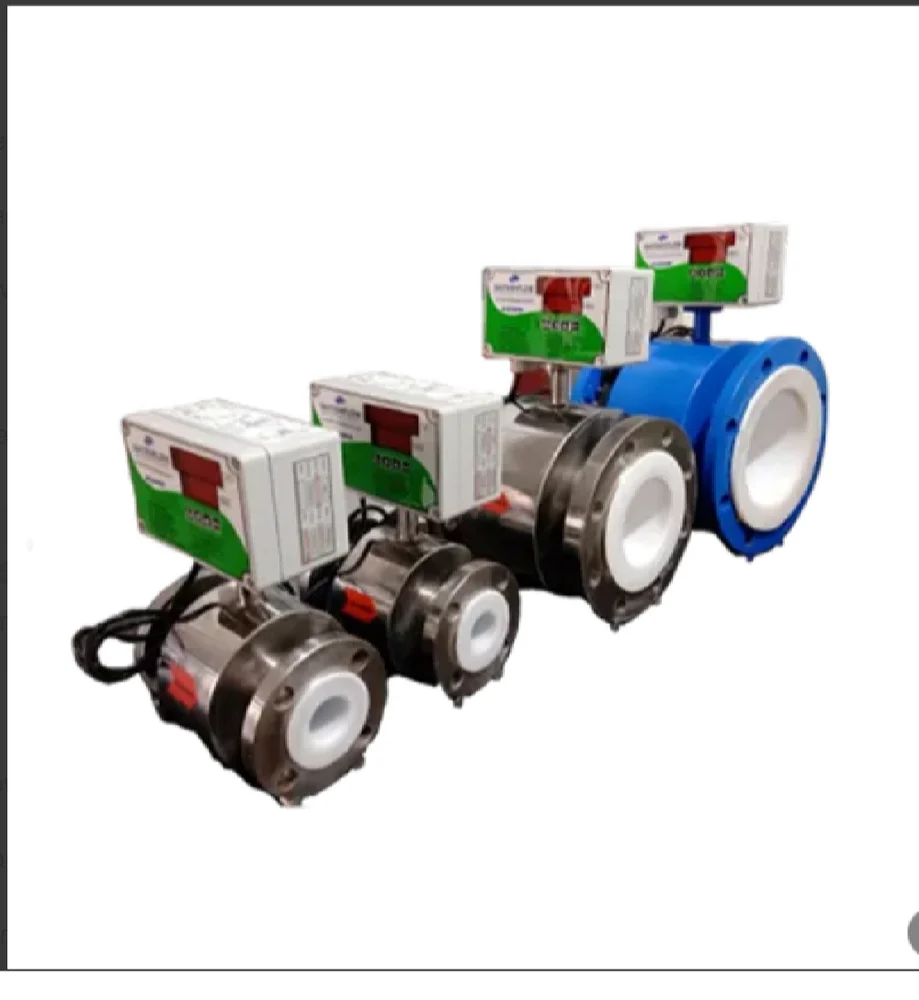

Water Meters For Chemical/Pharmaceutical Industry
Accuracy ±0.5% of reading plus zero stability Zero stability ±0.1% of full scale Repeatability ±0.1% Max Fluid Velocity 10 m/s Tube Material 304 Stainless steel Line Sizes 1” to 16” Flange Material Stainless steel or carbon steel Electrode Material Hastelloy C 22 (standard) Liner Material Ebonite or PTFE PTFE optional 5” and above Max Temp Range Dependent on liner material when electronics remotely mounted Ebonite: -40Ëš to 176Ëš F PTFE: -40Ëš to 356Ëš F Note: Please contact factory if temperatures above 284Ëš F (140Ëš C) are required. Max Operating Pressure Dependent on flange rating Max Cable Length 100 meters Min Conductivity 5 μS/cm, 20 μS/cm for DI water Rating IP 68 up to a depth of 10 meters CE Declaration EN 61326:1997 to EN 61326/A3:2003 Straight Run 5D upstream and 3D downstream minimum NSF Certification Standard 61 Drinking Water System Components
