Wafer Type Electromagnetic Flowmeter
| Brand | manas microsystems |
| Display | Digital |
| Typical Accuracy | Better than 0.5% of reading |
| Min Media Conductivity | Greater than 5 S/cm |
| Input | Micro-volt Signal proportional to flow rate from primary Flow sensor . |
| Local Display | 3 1/2 digit, 0.5" LCD calibrated in % or engineering units |
| Ranges | 10.00 m/s FS |
| Accuracy | Maximum Inaccuracy 1% of reading between 100% to 10% of calibrated flow range |
| Repeatability | 0.2% of reading |
| Operating Temperature | 0-50 deg C |
| Temperature Drift | 0.015 % per deg C |
| Material of Housing | Al Die Cast |
| Flow Velocity Range | Max 10 m/s |
| Power Supply | 230V AC/ 110V AC, 50 Hz |
| Ingress Protection | IP-67 |
| Mounting | Integral / Remote Mounting |
Feature
| Brand | manas microsystems |
| Display | Digital |
| Typical Accuracy | Better than 0.5% of reading |
| Min Media Conductivity | Greater than 5 S/cm |
| Input | Micro-volt Signal proportional to flow rate from primary Flow sensor . |
| Local Display | 3 1/2 digit, 0.5" LCD calibrated in % or engineering units |
| Ranges | 10.00 m/s FS |
| Accuracy | Maximum Inaccuracy 1% of reading between 100% to 10% of calibrated flow range |
| Repeatability | 0.2% of reading |
| Operating Temperature | 0-50 deg C |
| Temperature Drift | 0.015 % per deg C |
| Material of Housing | Al Die Cast |
| Flow Velocity Range | Max 10 m/s |
| Power Supply | 230V AC/ 110V AC, 50 Hz |
| Ingress Protection | IP-67 |
| Mounting | Integral / Remote Mounting |
Description
Introduction:
- Know your water consumption not just by assumption but by correct instrumentation.
- Jal-oagh provides the solution.
- We have introduced a new economical series of EMF, considering water as the most important utility in any industry.
Jal-Oagh 100, 300 Series Of EMF:

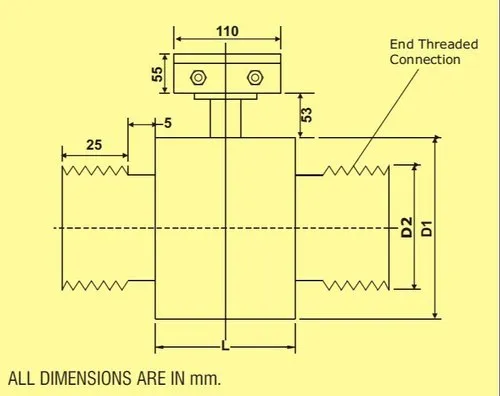

- These flow meters are dedicated for waste water management system, sewage & effluent water measurement. These flow meters are mainly categorized into two i.e. Threaded & Wafer type. Threaded is available from DN 25 to DN 65 i.e. Jal-Oagh 100 Series while Wafer is available from DN 50 to DN 200 i.e. Jal-oagh 300 Series.
Principle of Operation:
- The JAL-Oagh series of electromagnetic flow meters work on Faraday's law of electromagnetic induction. When a conductor moves within a magnetic field, voltage is induced in it which is proportional to the velocity of the conductor.
In this case the conductor is flowing media. The equation is as below:
E=B.v.D
where,
- E = Induced voltage [proportional to velocity]
- B = Magnetic flux density
- v = Mean velocity of the media
- d = distance between the sensing electrodes
- For a given size of flow tube & compatible amplifier the flux density 'B' is constant, the distance between the electrodes is constant.
Jal-oagh Application:
- Effluent Treatment: Untreated as well as Treated Effluent Water Measurement.
- Sewage Treatment: Waste water measurement, Sludge measurement etc.
- Water Supply Schemes :Raw water as well as treated water measurement.
- Boiler Feed Water Measurement.
- Chemical Industries: Measurement of acidic & alkaline chemicals & slurries
