VMC Mild Steel Hydraulic Type Plate Bending Rollin
280000
incl. GST

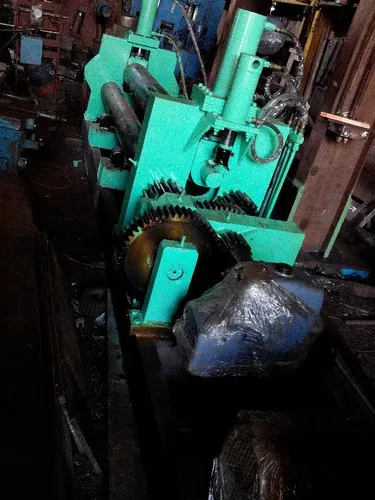

VMC Mild Steel Hydraulic Type Plate Bending Rolling Machine, Automation Grade: Semi-Automatic in Mumbai
☰
VMC Mild Steel Hydraulic Type Plate Bending Rolling Machine, Automation Grade: Semi-Automatic in Mumbai
| Usage/Application | to make tanks,boilers,pipes,liners |
| Brand | VMC |
| Bending Material | Mild Steel |
| Max Bending Radius | 0-50 mm |
| Rolled Shape | Tube |
| Automation Grade | Semi-Automatic |
| Production Capacity | 15-20 ton/day |
| Machine Type | plate bending machine |
| Length | 300 mm to 6000 mm |
| Sheet Thickness | 1 mm to 50 mm |
| Minimum Order Quantity | 1 |
VMC Mild Steel Hydraulic Type Plate Bending Rolling Machine, Automation Grade: Semi-Automatic in Mumbai
Used Hydraulic Surface grinder Table size : 150 X 500mm Maximum working height from table to grinding wheel : 250mm Vertical feed graduation : 0.01mm Cross feed graduation : 0.05mm Spindle speed : 2800 rpm Size of wheel : 150x13x31.75mm Motor : 1hp 3ph
...
Sampling unit is connected to molasses conditioner or sugar melter with necessary fixing arrangement. Brix sensor installed at distance “h”. It represents the head in inches of water column for which the brix transmitters adjusted (or conductivity type brix sensor), for example, the brix measuring column is filled with water or liquor at zero degree brix. The pressure produced on the brix sensor (pressure transmitter) will be the same as the density of molasses or liquor. Brix controller compares the measured brix with set brix & controls the molasses- diluting valve. In second loop, temp of the brix is measured & controlled by simple temp control system. It senses brix temp & controls steam valve.
Technical details:
| Capacity of plant | In tcd | ||
| Required molasses conditioner / sugar melter capacity | In tons /hr | ||
| Type of molasses, for which conditioner required | A. b. c. heavy/light | ||
| Production of abc (heavy/light) molasses | In % on a. b. c. mass cute | ||
| Required type of control system | On / off pid Additional Information
|
We are the Mahavir Electricals Leading Manufacture in Electric Industrial Heating Oven in Pan India
...
Centrifuge Separators - Semi Automatic Features
Unlike conventional systems for removal of sludge, better cleaning results are obtained using centrifuge separators. Centrifuge separators do not have a filter media and hence do not have choking problems or recurring filter media costs. The semi automatic separator is of a continuous feed, on-line separator, having very high solid-liquid separation efficiency up to 5 microns.
The semiâ€automatic centrifuge separator basically consists of housing with a rotor. The special rotor arrangement spins at a very high speed, thus developing the necessary G-force to separate the most difficult of sludge from the water. During operation, the sludge with water (or oil+fines) is introduced in the separator from the top. The sludge suspension is accelerated on rotor speed and guided towards the outer diameter via an impeller hub. The solid particles are pressed against the inner side of the sludge insert. Due to the high rotation speed the separated clean water develops approx. 0.5 bars pressure and is routed back to process.
After the preset time is over, the sludge suspension supply is automatically stopped and the rotor decelerates. At standstill, the residual water is drained. The separator is manually opened and the sludge insert is removed for sludge cleaning. The cleaned sludge insert is replaced inside the separator and the process is restarted. The PLC control system manages the timing and safety features of the separator.
