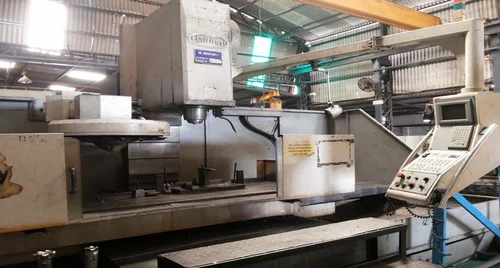

Vertical Machining Center in pune
Machining Center Vertical
Make:Hartford,Taiwan Model:VMC2060
YOM:2005
Condition: Can be Inspected under Power
Location: India
Feature
Machining Center Vertical
Make:Hartford,Taiwan Model:VMC2060
YOM:2005
Condition: Can be Inspected under Power
Location: India
Description
Working surface : 2100*850 mm,Table Load capacity : 2500 kg,Tslots (size*number*pitch) : 18*7*120 mm,X axis travel : 2060 mm,X axis speed : 15000 mm/min,Y axis travel : 800 mm,Y axis speed : 15000 mm/min,Z axis travel : 660 (820 opt) mm,Z axis speed : 15000 mm/min,Distance from spindle end to table : 185~845~/310 ~970 mm,Distance from spindle center to column : 890 mm,Spindle nose taper #50,Spindle speed (pulley type) : 506000 rpm,Cutting federate : 1~ 7000 mm/min,Tool storage capacity : 20/32 PCS,Max Tool weight : 15 kg,Tool shank : BT 50,Kva Rating : 45 kva,Required air pressure : 6.5 Kg/cm²,Control : Misubishi.
Spindle Speed(RPM):50-6000
Table Size:2100*850
Travels XYZ (mm):2060,800,60
