Versagraph Extreme A Plasma Cutting Machine
| Weight | 37 kg approx |
| Number of oxy fuel torches | Up to 16 oxy-fuel torches |
| Power Requirement | 480/3/60 @ 30 Amp |
| Traverse Speed | 1400 IPM |
| Main Roller Diameter | 12 inch |
| Material | MS, CS |
Feature
| Weight | 37 kg approx |
| Number of oxy fuel torches | Up to 16 oxy-fuel torches |
| Power Requirement | 480/3/60 @ 30 Amp |
| Traverse Speed | 1400 IPM |
| Main Roller Diameter | 12 inch |
| Material | MS, CS |
Description

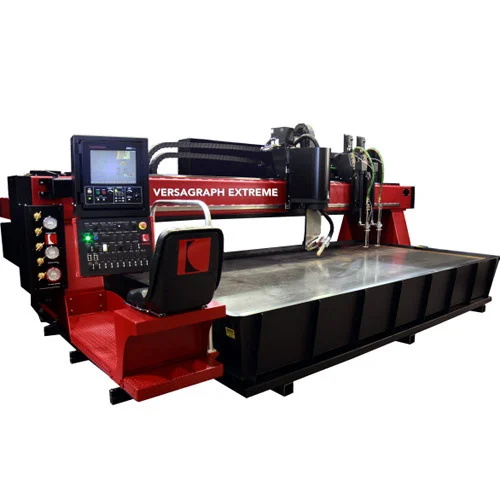

The Versagraph Extreme A Plasma Cutting Machineis an extra heavy-duty, gantry, a thermal cutting machine using the latest design methods such as Finite Element Analysis (FEA) to assure this machine can operate in the most challenging environments. The Versagraph Extreme series utilizes the latest technologies to provide unmatched speed, accuracy, versatility, reliability and durability in a thermal cutting machine.
The Versagraph Extreme can be fully customized to fit your production needs and increase your productivity. Multiple plasma stations, oxy-fuel stations, marking options as well as full contour plasma beveling, which is controlled through a very easy to use operator interface. Steel Service Centers, Heavy Fabricators, Equipment Manufacturers, and Shipbuilders are just a few of our markets.
Details
- Operator Station Sercos III Edge-Pro CNC provides fast communications between the CNC, tool options, and ethernet. The easy to use operator console is designed to incorporate up to 4 plasma stations, 2 full contour plasma bevel heads and up to 16 oxy-fuel torches. A swivel design allows the operator to work inside or outside of the longitudinal rail.
- Large Heavy Duty Rail System The floor mounted rail systems provides a very rigid foundation for the large 37 KG triple machined rail. This is necessary for very accurate and smooth machine motion. This large heavy-duty rail system can be easily expanded to accommodate additional cutting lengths or additional machines on a common rail.
- KOIKE Engineered Main Electrical Enclosure No proprietary components are designed into the KOIKE main electrical enclosure. Only "Off-the-Shelf" components are structured for this design. This main electrical enclosure incorporates Sercos-III interface for extremely fast communication between the CNC and electrical components. 18 Amp Bosch/Rexroth drives are used to give the HP required to achieve 1400 IPM rapid traverse speed. Power requirements are 480/3/60 @ 30 Amp.
- Powerful AC Servo Drives and Ultra Low Backlash Planetary Gearboxes Power 6 hp drives, for X and Y-axis, provide precise, smooth, and accurate motion for excellent cut quality.
- Drive System Engagement Precisely engages the pinion into the rack using dual precision linear bearings. Provides long life and accurate machine motion.
- Large Diameter Drive Pinions Large diameter pinions offer accurate and smooth machine motion and are designed to achieve a very 1400 IPM rapid traverse speeds.
- Large 12" Dia. Main Roller/Rail Scrapper Large heavy duty main saddle rollers provides stability for heavy loads while achieving smooth motion.
- Large Brass Rail Scrappers Provide excellent scrapping of debris to keep machine motion smooth and stable.
- Cross Axis Cable Carrier A sealed design keeps hoses and cables protected from harsh environments.
- Rail Axis Cable Carrier Can be mounted on the floor or overhead (optional). A sealed design keeps hoses and cables protected from harsh environments.
- Heavy Duty Cross Axis Linear Bearings Precision linear bearings provide smooth and very accurate motion while providing very heavy load capacities
