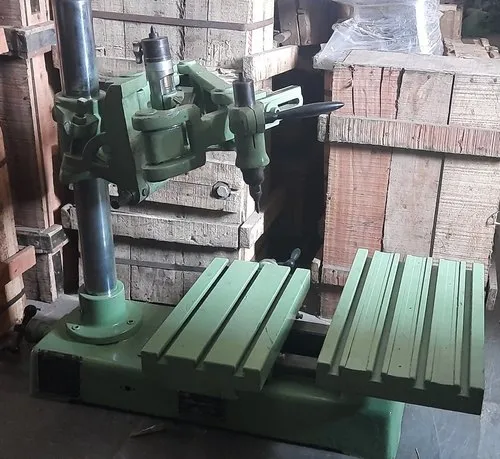

Used Pantograph Engraving Machine
| Automation Grade | Semi-Automatic |

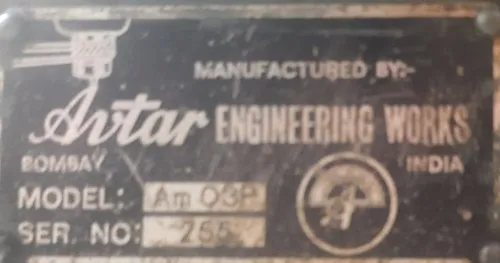

| Model Name/Number | 03P |
| Country of Origin | Made in India |
Feature
| Automation Grade | Semi-Automatic |
| Model Name/Number | 03P |
| Country of Origin | Made in India |
Description
Technical Specifications Drive Motor Capacity 1/4 H.P. 2800 rpm Spindle Type of drive Nylon endless cords Speed range 6000 to 14000 rmp No. of speeds Four Vertical travel 6mm Cross traverse 3mm Spindle hole taper 20 degree Max. collect capacity 6mm Pantograph Ratio (Max.) 1:2 Ratio (Min.) 1:8 Work Table Clamping area 420x190mm Movement longitudinal 165mm Cross traverse 230mm Vertical distance 230mm Spindle nose to table top No. of slots Four (12mm) Template Table Clamping area 210x410mm No. of copy holding slots Five Blank size 31.50mm Overall Dimensions L x W x H (950x700x750mm) Weight Approx. 125 Kgs
