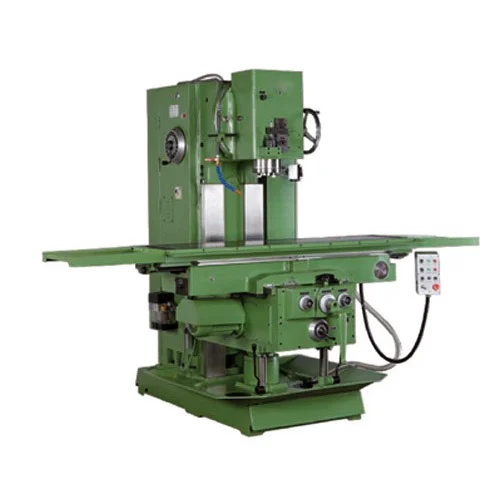

Universal Knee Type Milling Machine
Brand | Fostex |
Longitudinal Travel | 1530/1520 mm |
Rapid Feed Speed | X/Y 3000 Z: 1000 mm/min |
Overall Dimension | 2250x3200x2340 mm |
Max Swivel Angle of Spindle | +/- 45 Degree |
Cutting Feed Speed | X/Y: 16-800 Z:5 -250 mm/min |
Model | X5050 |
Vertical Travel | 630/610 mm |
Distance Between Spindle Nose and Table Surface | 95-725 |
Spindle Speed Range | 45-1800 rpm |
Spindle Travel | 90 mm |
Spindle Motor Power | 15 kW |
Max Load Table | 1500 kg |
Table Size | 2000x500 mm |
Transverse Travel | 360/345 mm |
Spindle Speed Step | 17 step |
Machine Weight | 5200 kg |
Feature
Brand | Fostex |
Longitudinal Travel | 1530/1520 mm |
Rapid Feed Speed | X/Y 3000 Z: 1000 mm/min |
Overall Dimension | 2250x3200x2340 mm |
Max Swivel Angle of Spindle | +/- 45 Degree |
Cutting Feed Speed | X/Y: 16-800 Z:5 -250 mm/min |
Model | X5050 |
Vertical Travel | 630/610 mm |
Distance Between Spindle Nose and Table Surface | 95-725 |
Spindle Speed Range | 45-1800 rpm |
Spindle Travel | 90 mm |
Spindle Motor Power | 15 kW |
Max Load Table | 1500 kg |
Table Size | 2000x500 mm |
Transverse Travel | 360/345 mm |
Spindle Speed Step | 17 step |
Machine Weight | 5200 kg |
Description
Berlin Machine Corporation is offering Universal Knee Type Milling Machine. This series is made available in different models as well.
