Universal Indexing Device
Material | CAST IRON |
Through Hole | NO |
Tilting Angle | 0-90 deg |
Chuck size | 4" |
Country of Origin | Made in India |
Feature
Material | CAST IRON |
Through Hole | NO |
Tilting Angle | 0-90 deg |
Chuck size | 4" |
Country of Origin | Made in India |
Description

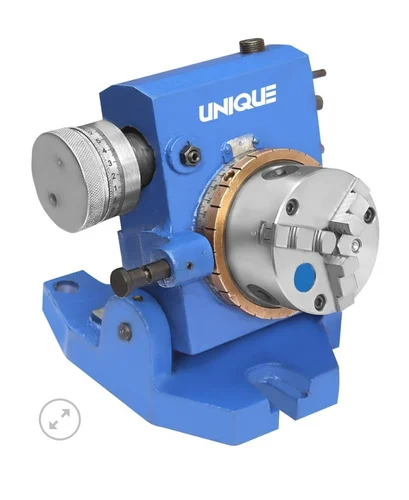

Tilting Indexing Device ( with 3 Jaws Chuck Mounting )
Size : 4"
Features :

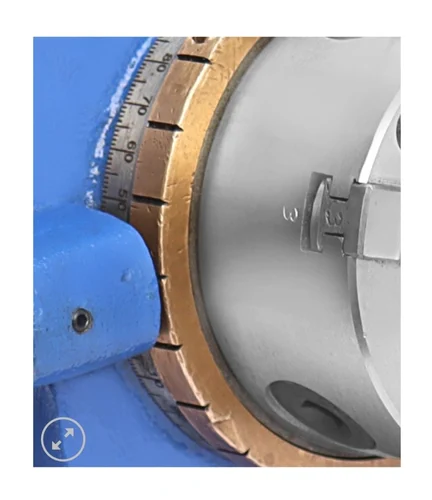

For bigger quantity work, rapid indexing is simplified by use of replaceable notched rings can be notched to individual requirements.
Rapid direct indexing through 360 degree by means of scales graduated in units of one degree division on the flanges.

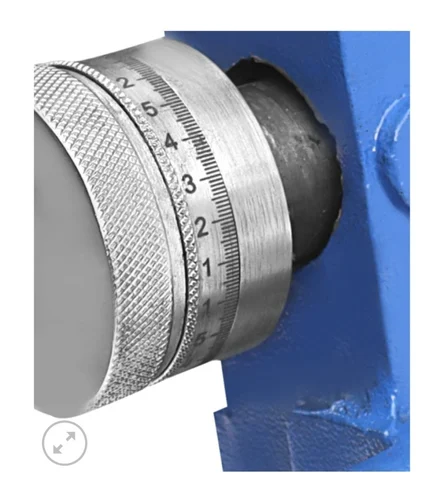

Indirect indexing is by means of worm and worm wheel giving direct reading of one minute on handwheel scales.
The chuck can be swivelled up to 90 Degree
Worm Gear is easily and quickly detachable for direct indexing.
Three Jaws chuck is standard equipment with one set of reverse jaws.
The Graduation ring on hand knob is adjustable
Application :
An ideal indexing device for mechanics, tool makers and engravers for speedy and precision milling, drilling, boring and grinding operations.
Technical Specification
•SIZE IN INCHES 4
•Diameter Chuck (in mm) 100
•Length in mm 250
•Width in mm 220
•Height in mm 190
•Swivel 360°
•Tilting 90°
•Slot Distance in mm :170
•Weight (Approx) in kgs. 16
