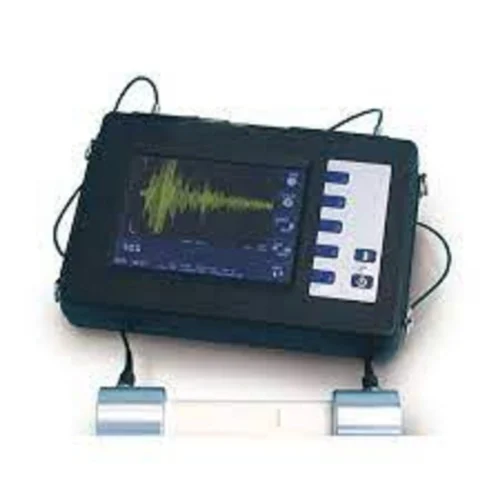

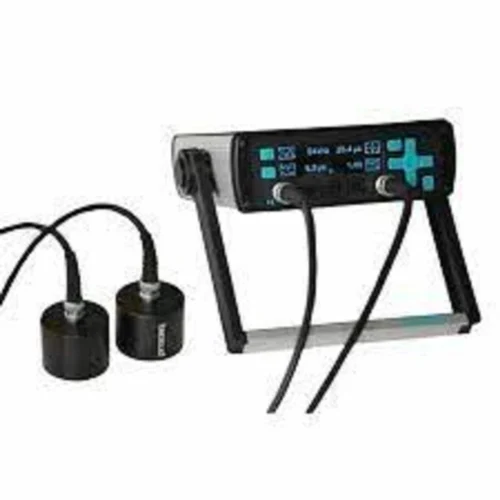

An ultrasonic pulse velocity test is an in-situ, nondestructive test to check the quality of concrete and natural rocks. In this test, the strength and quality of concrete or rock is assessed by measuring the velocity of an ultrasonic pulse passing through a concrete structure or natural rock formation.
| Brand | Vertex |
| Country of Origin | Made in India |
An ultrasonic pulse velocity test is an in-situ, nondestructive test to check the quality of concrete and natural rocks. In this test, the strength and quality of concrete or rock is assessed by measuring the velocity of an ultrasonic pulse passing through a concrete structure or natural rock formation.
Being a most prominent organization, we are engaged in offering a wide range of Online Moisture Meter.
Specifications:
MOQ - 5 PCS
Microscopes are used in viewing specimens that are relatively very small in size, they are used to view the cellular structures of organs, germs, and bacteria, They play a very important role in the laboratory for the tissues and organisms which are too small to be seen clearly with the naked eye.
Manas have now introduced a new type of primary flow sensor & smart flow transmitter in their electromagnetic flow- meter series. This sensor works on the Faraday's law of electromagnetic induction. The meter is true volume measuring meter. The measurement is independent of Viscosity. Density, Dissolved/Un-dissolved solids, pressure or temperature of the flowing liquid as long as it maintains certain minimum conductivity. Various types of Liner & Electrode materials are available as per application requirements. The new sensors are more compact in size & more sensitive. Earth ring or earth electrode, both options are available. Empty tube detection is also provided.
Principle Of Operation
The SROAT 1002 series electromagnetic flow meters work on Faraday's law of electromagnetic induction. It, in brief, states; when a conductor moves within a magnetic field, voltage is induced in it which is proportional to the velocity of conductor.
In this case the conductor is flowing media.
The equation is as below :
E = B.V.D
Where
E = Induced voltage (proportional to velocity)
B = Magneticflux density
V = Mean velocity of the media
D = Diameter of flow-sensor (distance between the sensing electrodes)
For a given size of flow tube & compatible amplifier the flux density 'B' is constant, the distance between the electrodes is constant. Hence, the induced voltage is proportional to the flowing media. Thus the meter can be calibrated in terms of volumetric flow rate by knowing the cross-sectional area of the tube.
Principal Advantages:
