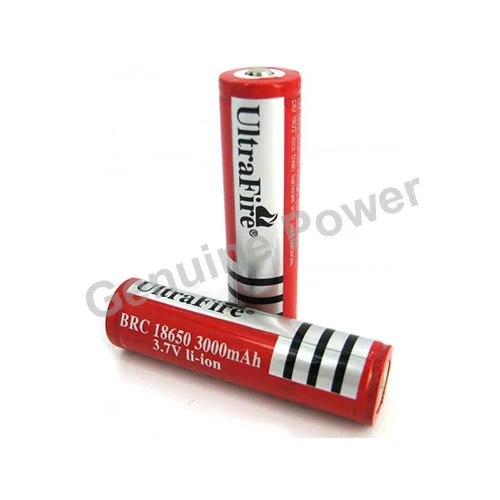

Ultrafire Lithium Battery
| Cut-off Voltage | 2.5V |
| Internal Impedance | less or equal to 180 milli-ohm (with PTC) |
| Cycle Performance | 90% of initial capacity at 400 cycles |
| Cycle life | Less than 500 cycles |
| Nominal Voltage | Average 3.7V |
| Height: 66.5+/- 0.2mm | 46 g |
| Charge | Current = 0.5C (~1500mA) Voltage = 4.2 V End Current = 0.01 mA |
| Discharge | Current = 0.5C (~1500mA) End Voltage = 3.0V |
| Dimensions | Diameter: 18.6+/-0.2 mm *,Height: 66.5+/- 0.2mm |
| Capacity | Nominal&: 3000mAh, Minimum: 2450 mAh |
Feature
| Cut-off Voltage | 2.5V |
| Internal Impedance | less or equal to 180 milli-ohm (with PTC) |
| Cycle Performance | 90% of initial capacity at 400 cycles |
| Cycle life | Less than 500 cycles |
| Nominal Voltage | Average 3.7V |
| Height: 66.5+/- 0.2mm | 46 g |
| Charge | Current = 0.5C (~1500mA) Voltage = 4.2 V End Current = 0.01 mA |
| Discharge | Current = 0.5C (~1500mA) End Voltage = 3.0V |
| Dimensions | Diameter: 18.6+/-0.2 mm *,Height: 66.5+/- 0.2mm |
| Capacity | Nominal&: 3000mAh, Minimum: 2450 mAh |
Description
Protected 18650 3000mAh rechargeable 3.7-volt battery - charge with the Ultrafire Multi-Battery charger.
The advantage of this cell is that it features a button top making it particularly compatible with many flashlight applications.
Rechargeable Lithium batteries are rapidly becoming a very economical way to lower the operating costs of Lithium-Powered flashlights. We offer a number of different options in order to meet any rechargeable needs. These are Protected batteries.
These fully protected cells simplify usage with their integrated PCB. Perfect for your single cell application these cells are not for pack building as doing so will defeat the PCB protection which is matched to the correct voltage on a single cell. If you are building a pack please choose one of our other cells and the appropriate PCB.
Related Products

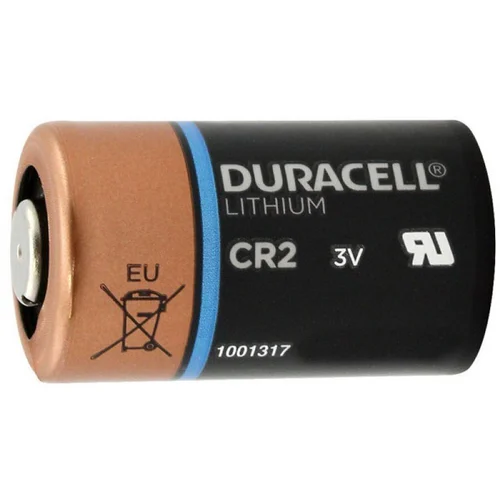

CR2 Replacement for Panasonic /Fuji / Omni cell
