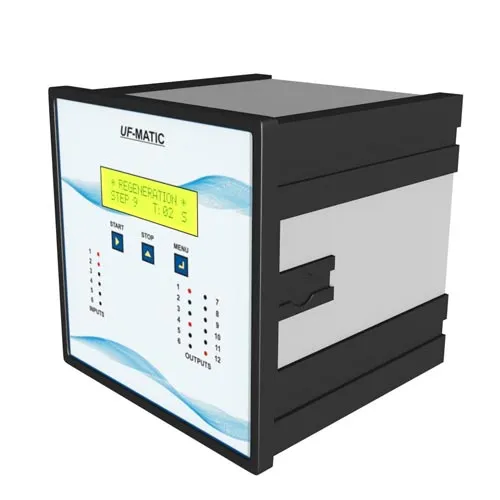

UF-MATIC Controller
| Model Name/Number | UF-Matic |
| Brand | Aster |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Display Type | Digital |
| Display | 16 x 2 Alphanumeric Display |
| Overall Size | 144 (H) x 144 (V) x 125 (D) mm |
| Cutout Size | 140 x 140 mm |
Feature
| Model Name/Number | UF-Matic |
| Brand | Aster |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Display Type | Digital |
| Display | 16 x 2 Alphanumeric Display |
| Overall Size | 144 (H) x 144 (V) x 125 (D) mm |
| Cutout Size | 140 x 140 mm |
Description
With enriched industrial experience and knowledge, we are providing an excellent range of RO Controller (UF Matic) to our clients. Designed and manufactured with utmost precision, the offered product is manufactured using optimum quality components and advanced technology. In addition to this, our product undergoes various tests under the supervision of quality controllers, in order to ensure their flawlessness. The offered product has immense application in electronic and electrical circuit.
Features:
- Heavy duty extruded Aluminum box with ABS front plate
- Rear terminal strip for ease of wiring
- Universal; Suitable for any logic & for all type of membranes
- User settable; Up to 10 valves & 2 pumps programmable at site
- All timings are settable at site
- Can program up to 30 steps
- User settable frequency for CEB & Backwash cycles
- Settable pump ON & pump OFF delay avoids water hammering
- One Flow input (with inbuilt totalizer)
- Separate LED for every input & output
- Can be used even for MB automation
Technical Specification:
| Overall Size | 144 (H) x 144 (V) x 125 (D) mm |
| Cutout Size | 140 x 140 mm |
| Mounting | Panel/Field |
| Supply | 230 V A.C. ±10% |
| Cable Termination | Rear Terminals |
| Enclosure | Heavy duty extruded Aluminum with ABS front plate |
| Display | 16*2 alphanumeric display |
| Inputs | 6 other switch inputs RWT Level TWT Level Dosing Tank Level TWT Low Level Pressure input Remote fault |
