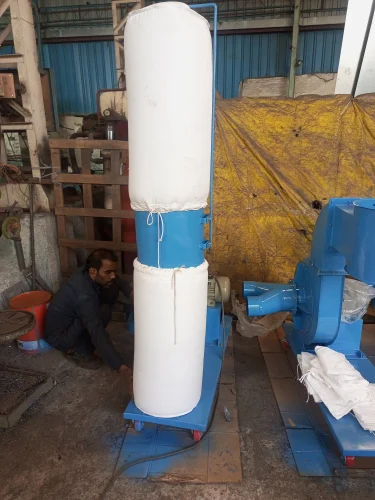

Two Stage Wood Dust Collecting Machine

Product Description

Technical Specification Bag Type Dust Collector.

Type                                        :- SISW

Model                                      :- ACSLL

Make                                       :- Air Control Systems

Fan Capacity                           :-800CFM

Static Pressure                          :-150MMWC

Fan Speed                               :- 2880 RPM

Motor Description

Motor HP                                :- 1HP/2880 RPM/ Flange Mounted Motor.

Motor                                      :- Motor TEFC Sq/ Cage 415 V AC ,50HZ, S-1 DUTY IP55 ,CLASS F.  IE2.

Motor RPM                             :-2880 RPM

Drive arrangement                  :-Direct  Driven.

Price Quoted with motor of Crompton / Bharat Bijlee / Hindustan or Havels make 3 Phase

Construction Material Description

Casing                                      : MSIS2062

Impeller                                   : MSIS2062

Paint                                        :2 Coat Enamel Paint.

Impeller Balance : Imp. Statistical & Dynamically Balanced As Per ISO 1940 Grade 6.3.
