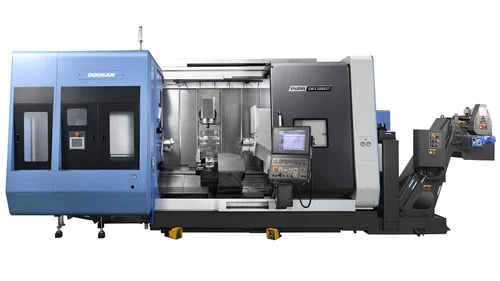

Tt 2500ms/Sy Doosan Twin Turret Vertical Turning Machines in pune

Feature

Maximum Turning Length	350 mm
Maximum Turning Diameter	On upper turret 390 mm and On lower turret 300 mm
Model Name/Number	TT 2500MS/SY
Brand	Doosan
Overall Weight	12700 kg
Od Turning Tool Size	25 x 25 mm
Max Boring Bar Dia	40 mm
Max Spindle Speed	3500 rpm
Series	PUMA TT2500 series
Features	DOOSAN Fanuc i Plus {Fanuc 31i}
Main Spindle Motor	26 / 22 kW
Max Turning Diameter	230 mm
Swing Over Saddle	230 mm

Description

High performance turning center featuring first & second spindle that have the same power and capacity, withupper & lower turrets on the grounded box type bed.

Simultaneous machining on two faces with both spindles and turrets and virtual realization of Y-axis function will bring you double productivity.
The compact PUMA TT is packed with one-setup efficiency.
Thanks to its 24 tool positions in the upper and lower turrets, you’ll complete complicated parts that require plenty of tools in just one setup

EXCELLENT RIGIDITY AND POWER
DOUBLED PRODUCTIVITY
ADVANCED AUTOMATION
