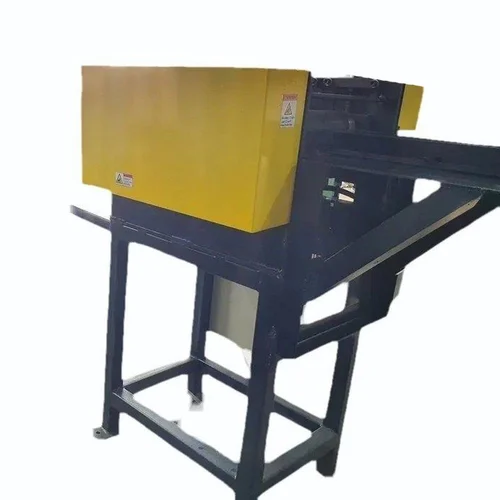

Transformer Laminated Core Cutting Machine
Product Specification
| Machine Type | Metal Cutting Machines |
| Core Diameter | 12 inch |
| Model Name/Number | AREC300 |
| Brand | Arecotech |
| Usage/Application | Industrial |
| Display Type | Analog |
| Is It Rust Proof | Rust Proof |
| Material | Mild Steel |
| Phase | Three Phase |
| Voltage | 215v |
Feature
Product Specification
| Machine Type | Metal Cutting Machines |
| Core Diameter | 12 inch |
| Model Name/Number | AREC300 |
| Brand | Arecotech |
| Usage/Application | Industrial |
| Display Type | Analog |
| Is It Rust Proof | Rust Proof |
| Material | Mild Steel |
| Phase | Three Phase |
| Voltage | 215v |
Description
Product Description

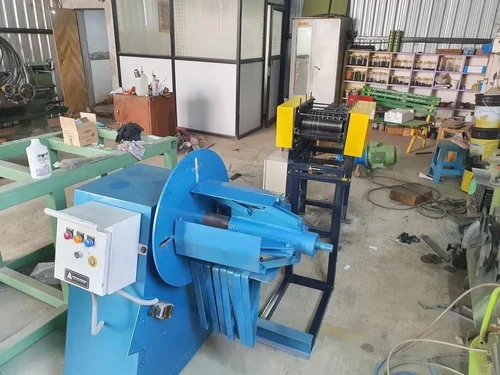

Strip width min/max mm 350 / 1250 Strip Thickness min/max mm 0.15 / 0.5 Material Silicon Steel Coil weight decoiler Kg 5000 maxCoil ID decoiler mm 508Coil OD decoiler mm 1200Line speed m/min 0-80Scrap disposal 2 scrap winderScope of Supply:Decoiler:Driven by a DC motor and reduction gearbox. Decoiler arranged for direct feeding. Fail-safe brake for emergency stop and in event of current supply failure. Drum expansion by hydraulically actuated.Working width mm 1250Mandrel length mm 1300 Mandrel No. of segments 4Expansion range mm 476 - 530 Round at diameter mm 508Coil outside diameter mm 1200Slitter:Consists of Slitter basic equipment along with housing with a table for cutter shaft mounting. DC Motor along with a DC Drive, reduction gearbox. Cutter arbors are located in pre-loaded taper roller bearings. Bearings mounted in eccentric bushings to maintain constant pass line-height.Working width mm 1250Slitting speed m/min 0 – 80
