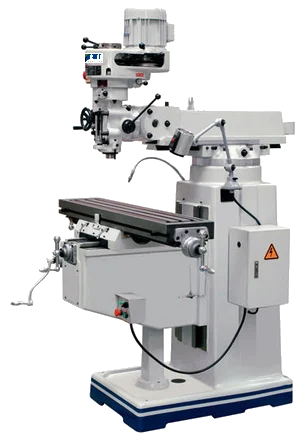

Touch Craft M1TR

All essential castings are made of high grade of Mechanist cast iron which has been stress relieved to provide a rigid machine structure.

Spindle runout guaranteed to be within 0.010mm

The dovetail slideways of the table, saddle, and column are hardened and ground for precise, smooth and wear resistant movement

Dynamically balanced motor and ground pulley

Chrome-plated and bearing supported motor shaft provides an extremely smooth, low vibration quiet drive.

High precision spindles use Class 7 angular contact bearings.

The hard chrome quill is ground to a mirror finish to ensure smooth movement

Double-nut mounting of table and saddle lead screws eliminates backlash

One-piece pinion gear and shaft; one-piece worm gear & shaft

Spindle Head is rigidly fixed to the ram for heavy-duty milling and is available with tilting head standard

An extra wide saddle is constructed to handle heavy workloads and to avoid table overhang

Spindle speeds are reached by manually switching V belt positions to match with cutting demands or cutter sizes. A braking system is equipped to facilitate operations.

The knee, ram, and table are equipped with a pair of locks that camp each axis to prevent lateral movement.

DRO is available for perfect positioning of for jig boring application.
