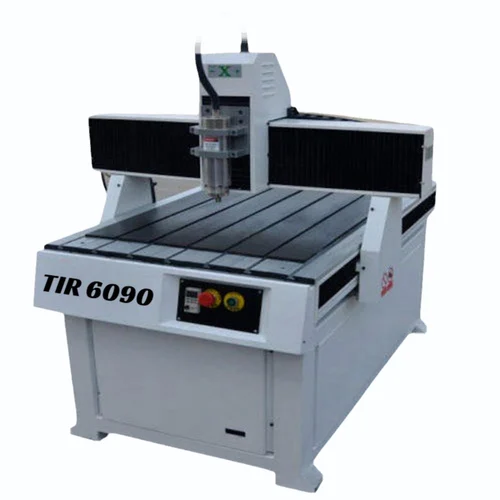

TIR-6090-ST 3 Axis CNC Engraving Machine in pune

Feature

X-Y Axis Working Area	600 x 900 mm
Z Axis Working Area	150 mm
Spindle Power	3 kW
Model	TIR-6090-ST
Machine Type	3 Axis
Job Material	Wood, Plywood, PVC, Sign Board, Acrylic, Plastic, Brass, Aluminium
Maximum Engraving Speed	500 mm/sec
Spindle Speed	18000 RPM
X-Y Movement	Rack & Pinion
Z movement	Ball Screw
Command Code	G Code
Driven Motor	Stepper Motor
Machine Weight	400 kg
Country of Origin	Made in India

Description

Engraving is a cutting technique or method that involves carving a design into a hard surface to adorn or label objects made of various materials. It was traditionally done with a set of manual engraving tools, but CNC engraving is now accessible. CNC engraving is done with computer-controlled devices that use milling paths created by CAD-CAM software based on the design drawing. CNC engraving machines, in comparison to manual engraving machines, are capable of performing a wide range of advanced precision engraving, whether for practical or artistic objectives.
