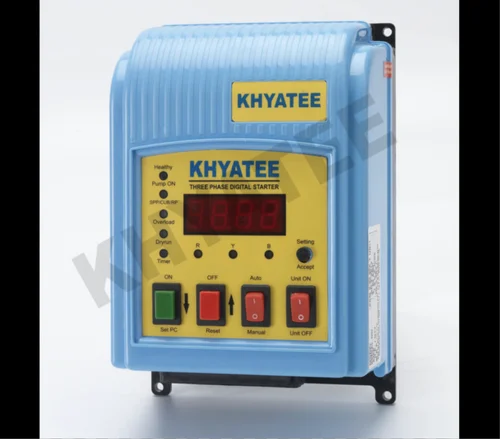

Three Phase Khyatee Starter Panel (KDM 222), 240V
Phase | Three Phase |
Voltage | 240V |
Protections | Phase Failure (Supply Side) Phase Failure (Motor Side) Reverse Phase (Supply Side) Voltage and Curre |
Power Consumption | Less than 5 Watts |
L x W x D (mm) | 220 x 135 x 75 mm |
Digital Ammeter Monitoring | 2-22 amp |
Digital Voltmeter monitoring | 200-500v |
Feature
Phase | Three Phase |
Voltage | 240V |
Protections | Phase Failure (Supply Side) Phase Failure (Motor Side) Reverse Phase (Supply Side) Voltage and Curre |
Power Consumption | Less than 5 Watts |
L x W x D (mm) | 220 x 135 x 75 mm |
Digital Ammeter Monitoring | 2-22 amp |
Digital Voltmeter monitoring | 200-500v |
Description
1. System Settings
• Input Voltage (AC) | : 250 – 470 VAC, 50 Hz |
• On voltage (Cold Start) | : 250 VAC |
• Auto Off voltage | : 200 VAC |
2. Protections / Setting Parameters
• Pump Current Range | : 2 – 22 Amp. |
Sr. No.ParameterSetting RangeDefault settingTrip Time DelayDisplayLED
3. Timers
1 | Phase Failure | Fixed | Fixed | 4 sec ± 1 sec | SPP | YES |
2 | Reverse Phase | Fixed | Fixed | 4 sec ± 1 sec | SPP | YES |
3 | Voltage Unbalance | Fixed | Fixed | 4 sec ± 1 sec | SPP | YES |
4 | Current Unbalance | 20% – 70% | 50% | 4 sec ± 1 sec | CUB | YES |
5 | Overload | 20% – 60% | > 140 % | 15 sec | OL | YES |
6 | Dryrun | 60% – 95% | < 75 % | 15 sec | DRN | YES |
7 | High voltage | 450 – 500 V | 480 V ± 2 V | Fixed | HIU | NO |
8 | Low voltage | 180 – 350 V | 250 V ± 2 V | Fixed | LOU | NO |
9 | Extremely High Current | Fixed | 26 Amps. | 3 sec | EHC | NO |
Sr. No.ParameterSetting RangeDefault settingDisplayLED
1 | Power ON Timer | 3 sec – 300 sec | 60 sec ± 3 sec | PONT | YES |
2 | Motor OFF Timer | 5 – 720 min | OFF | OFF | YES |
4. Monitoring
• Digital Voltmeter | : 200 – 500 V |
• Digital Ammeter | : 2 – 22 Amp. |
5. Reset
• Resetting mode | : Manual by OFF switch |
6. Output Relay Contact
• Relay Mechanical life | : 10 lac operations |
• Dielectric Strength | : 2.2 KV , 50 Hz for 1 min |
7. Enclosure & Mounting
• Enclosure Material | : Rust proof, Shock Proof, ABS Enclosure |
• Mounting | : Wall Mounting with 4 screw M4 × 15 mm |
• Temperature | : 5 to 60°C |
• Humidity | : Up to 90% RH |
8. Dimensions & Weight
• L × W × D (mm) | : 220 x 135 x 75 mm |
• Power Consumption | : Less than 5 Watts |
• Weights | : gms. |
