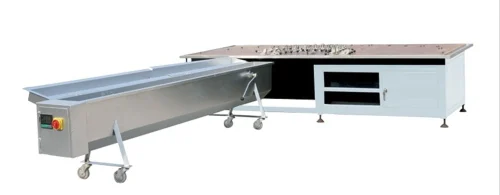

| Usage/Application | Industrial |
| Heating Temperature | 130 Degree C |
| Heating Groove Capacity | 200L |
| Dimension | 2850 mm x 1250 mm x 800 mm (L*W*H) |
| Weight | 480 Kg |
| Total Power | 12 kW |
| Input Power | 380V |
| Frequency | 50Hz |
| Model Number | SYH1800 |
| Minimum Order Quantity | 2 |
| Printing to be done on | CAP |
| Automatic Grade | Manual |
Additional Information
| Delivery Time | 1 day |
| Production Capacity | 500 pcs per day |
| Packaging Details | It will come with box packing with thermocol packing. |
| xpert II Series | EX II-24 | EX II-24LX | EX II-52 | EX II-52LX | |
| Max. Cutting Width | 600 mm (23.6 in.) | 1320 mm (51.96 in) | |||
| Max. Media Width | 719 mm (28.3 in.) | 1635 mm (64.37”) | |||
| Acceptable Material Thickness | 0.8 mm | ||||
| Max. Cutting Force | 350 g | ||||
| Max. Cutting Speed | 705 mm/sec (27.8 ips) (at 45 degree direction) |
635 mm/sec (25 ips) (at 45 degree direction) |
|||
| Mechanical Resolution | 0.012 mm (0.00047 in.) | ||||
| Software Resolution | 0.025 mm (0.00098 in.) | ||||
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater | ||||
| Repeatability | ±0.1 | ||||
| Tracking | 3M | ||||
| Memory Buffer | 1 MB / 500KB(when using AAS) | ||||
| Type of Command | HPGL, HPGL/2 | ||||
| Configurable Origin | Yes | ||||
| Repeat | Yes | ||||
| Copy | Yes | ||||
| Control Panel | 6 LEDs / 10 Keys | ||||
| Diameter of Blade | 2.5 mm | ||||
| Dimension (HxWxD) mm | 233*880*255 | 1065*1632*620 | |||
| Dimension (HxWxD) in | 9.1*34.6*10 | 41.93*62.25*24.41 | |||
| Net Weight | 11KG (24.3lb) | 41KG (90.2lb) | |||
| Stand | Optional | Standard | |||
| Automatic-Aligning System (AAS II) |
Available on Expert II LX models | ||||
| Power Supply | 100-240 VAC, 50 / 60 Hz (auto switching) | ||||
| Power Consumption | Max. 288 W | ||||
High Precision and High speed Systems,Vertical and Horizontal available compact design,Extremely rigid body.Realize High Clamping Force by Applying Double Piston
...
