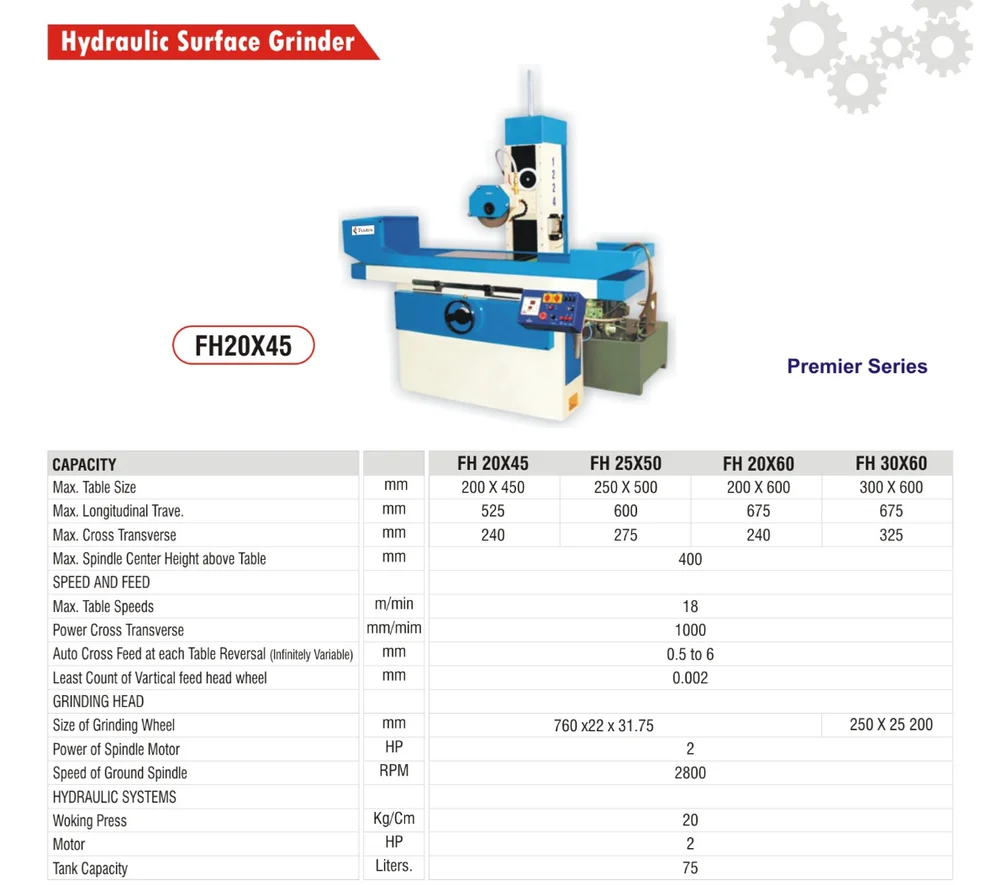

Surface Grinder Machine
| Minimum Order Quantity | 1 Piece |
| Type of Grinding Machine | Surface Grinding Machine |
| Table Clamping Surface (L*W) | 250X500 |
| Automatic Table Travel (mm) | 525X225 |
| Vertical Head Traverse (mm) | 400 |
| Max. Distance between Grinding Wheel & Table (mm) | 400 |
| Table Speed (m/min) | 1.5-18 |
| Brand | Fostex |
| Vertical Feed Graduation | 0.002 mm |
| Spindle Speed | 2800 rpm |
| Max Height Trom table to Grinding Wheel | 400 mm |
| Size of Grinding Wheel (Dia x Width x Bore) | 250x25x76.2 |
| Electric Motor Recommended | 3 Phase 2 HP |
Feature
| Minimum Order Quantity | 1 Piece |
| Type of Grinding Machine | Surface Grinding Machine |
| Table Clamping Surface (L*W) | 250X500 |
| Automatic Table Travel (mm) | 525X225 |
| Vertical Head Traverse (mm) | 400 |
| Max. Distance between Grinding Wheel & Table (mm) | 400 |
| Table Speed (m/min) | 1.5-18 |
| Brand | Fostex |
| Vertical Feed Graduation | 0.002 mm |
| Spindle Speed | 2800 rpm |
| Max Height Trom table to Grinding Wheel | 400 mm |
| Size of Grinding Wheel (Dia x Width x Bore) | 250x25x76.2 |
| Electric Motor Recommended | 3 Phase 2 HP |
Description
- Moving column type hydraulic surface grinder machine.
- Constructed using naturally seasoned materials equivalent to MEEHANITE grade, providing optimal ribbing for enhanced stability.
- Maximized vibration damping capacity for superior rigidity-to-weight ratio.
- Utilizes the latest design with all three axes operating independently.
Z Axis (Vertical Feed):
- Vertical feed with an increment of 0.002 mm as standard.
- Spindle housing driven by an AC induction motor via a precision trapezoidal lead screw with nut.
X Axis (Grinding Table):
- Grinding table travels on prism-flat ground Turcite-B lined guide ways.
- Table design adheres to the European standard ratio of 2:1 for column-moving configuration, ensuring minimal overhang.
Y Axis (Auto Cross Feed):
- Auto cross feed with incremental variable feed.
- Cross slide with column driven by an AC induction motor and drive mechanism.
