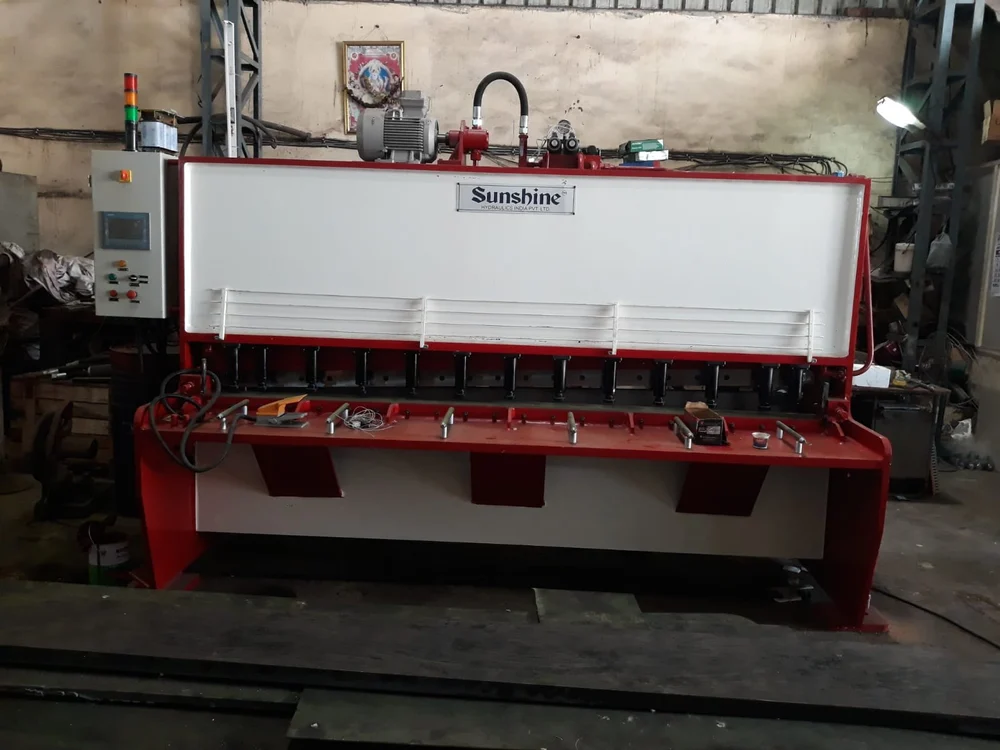

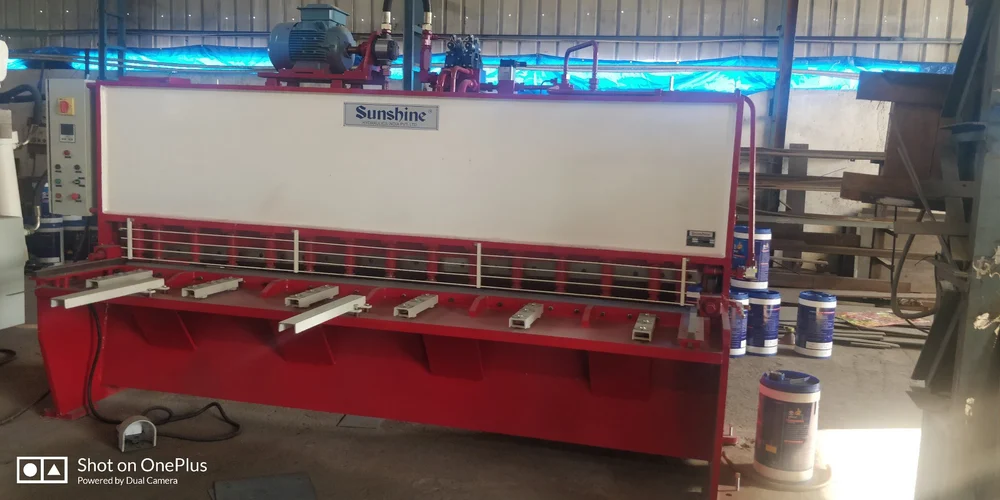

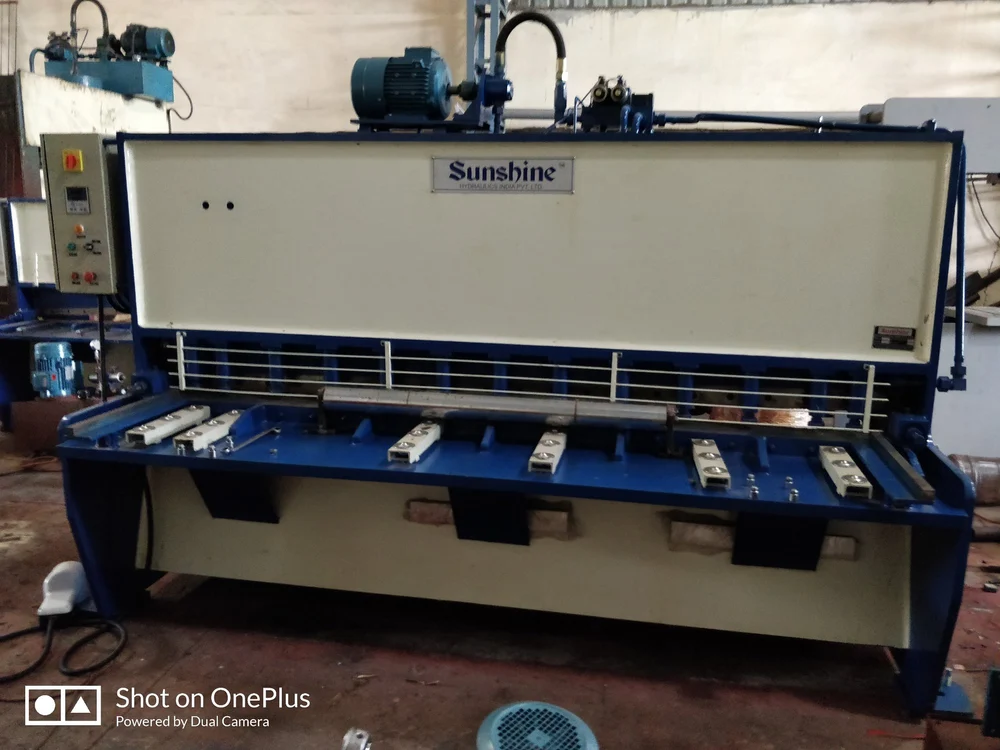

Sunshine Mild Steel Hydraulic Shearing Machine, Fo
| Usage/Application | Metal Sheet Cutting |
| Material | Mild Steel |
| Product Type | Hydraulic Machine |
| Max Shear Width | up to 6300mm |
| Control Type | Conventional and automatic Both |
| Shearing Material | Ms,Ss,Aluminium,Metal |
| Shearing Thickness | Up To 25 |
| Brand | Sunshine |
| Operation Mode | Semi-Automatic |
| Max Shear Thickness | Up to 25mm |
| Cutting Material | Mild Steel and Stainless Steel |
| Strokes Per Min | 10.0 |
| Body Material | Mild Steel |
| Automation Grade | Semi-Automatic |
| Size | 0.5mm-30mm X 1000mm to 6300mm |
| Back Gauge Manual | Motorized |
| Back Gauge Range | 1000mm |
| Motor | 10 |
| Shearing Width | Up To 5 Meter |
| Power | 10 HP |
| Weight | 3800 kg |
| No. Of Hold Down | 13 |
| Model Name/Number | HVR Series |
| Capacity | 30 MM |
| Warranty | 1 Year |
| Number Of Hold-Downs | 13 |
| Length | 1000mm to 6300mm |
| Motor Power | 10 HP |
| Power Source | Electrical |
| I Deal In | New Only |
| Adjustable Rake | Yes |
| Condition | New |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Feature
| Usage/Application | Metal Sheet Cutting |
| Material | Mild Steel |
| Product Type | Hydraulic Machine |
| Max Shear Width | up to 6300mm |
| Control Type | Conventional and automatic Both |
| Shearing Material | Ms,Ss,Aluminium,Metal |
| Shearing Thickness | Up To 25 |
| Brand | Sunshine |
| Operation Mode | Semi-Automatic |
| Max Shear Thickness | Up to 25mm |
| Cutting Material | Mild Steel and Stainless Steel |
| Strokes Per Min | 10.0 |
| Body Material | Mild Steel |
| Automation Grade | Semi-Automatic |
| Size | 0.5mm-30mm X 1000mm to 6300mm |
| Back Gauge Manual | Motorized |
| Back Gauge Range | 1000mm |
| Motor | 10 |
| Shearing Width | Up To 5 Meter |
| Power | 10 HP |
| Weight | 3800 kg |
| No. Of Hold Down | 13 |
| Model Name/Number | HVR Series |
| Capacity | 30 MM |
| Warranty | 1 Year |
| Number Of Hold-Downs | 13 |
| Length | 1000mm to 6300mm |
| Motor Power | 10 HP |
| Power Source | Electrical |
| I Deal In | New Only |
| Adjustable Rake | Yes |
| Condition | New |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Description
We are occupied in manufacturing superior quality of Hydraulic Shearing Machine in various shapes and sizes. It is made-up from high-grade components that assure high strength and toughness to the structure.
Features:
- Mono Block Welded steel right to deflection tensile movement of high tensile
- Motorized back gauge with electronic digital readout
- Electronically adjustment Rake Angle as per material of thickness for twist free as. Synchronized Beam guided system for constant gap between Blades
- Extra capacity to cut Hard- thicker plate than nominal capacity
- Blades Produced from High alloying steel with functional four side
- Adjustable Cutting clamping force for quality cutting power saving
- Rapid cutting of short pieces by electrical stroke adjustment system
Product Details:
- Moving beam Synchronized by differential Cylinders
- Hardened rollers guide beam for constant blade gap
- Blade gap easily adjustable by calibrated levers
- Rake angle adjustable to suit thickness and material
- Activation from console and movable foot cut switch
- Sheet clamped hydraulically before cut starts
- Stroke length – position can be set for short jobs
- Beam returns on releasing foot switch for smaller cuts
- First two hold down spaced closer at both ends
- Hardened rods on table for safe easier feeding
- Two front supports for supporting longer plates
- Front operated motorised back gauge 1000 mm travel with D. R.O compact low maintenance of silent Hydraulic system
Additional Information
| Item Code | HVR-340 |
| Delivery Time | 25 to 30 days |
| Production Capacity | 8 to 10 machines per month |
| Packaging Details | plastic wrapping |
