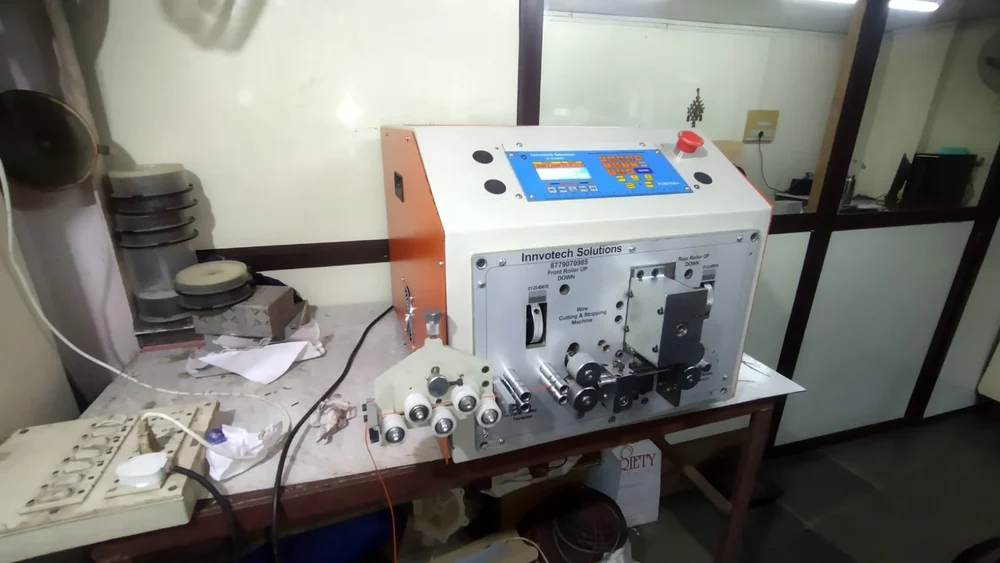

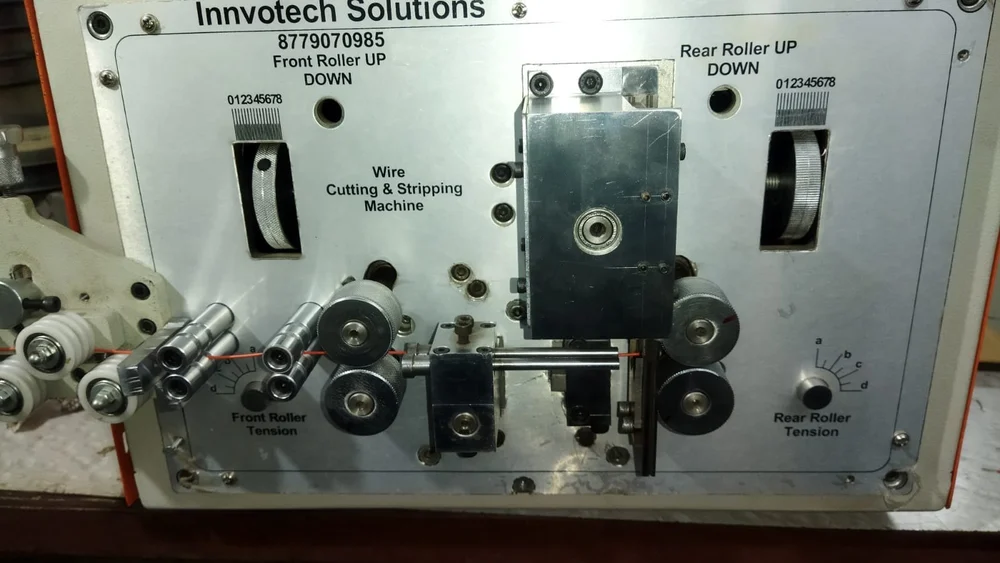

Standard Electric Copper Wire Stripping Machine, Capacity: 5000 Wires Per/Hour, Automation Grade: Au
| Capacity | 5000 wires per/hour |
| Model Name/Number | WSCM-E |
| Automation Grade | Automatic |
| Power Source | Electric |
| Design | Standard |
| Stripping Material | PVC Copper Wires |
| Frequency | 50 Hz |
| Voltage | 220 V |
| Blade Type | HSS |
| Compressed Air Connection | 4 Bar Pressure |
| Data Interface | Keypad |
| Drive System | Stepper |
| Increment For Strip Length | 0.1 mm |
| Max Outer Diameter | 2.5 mm |
| Wire Length Range | 1 - 10 meter |
| Weight | 60 kg |
| Dimensions | 465 W x 385 H x 460 D mm |
| Minimum Order Quantity | 2 |
Feature
| Capacity | 5000 wires per/hour |
| Model Name/Number | WSCM-E |
| Automation Grade | Automatic |
| Power Source | Electric |
| Design | Standard |
| Stripping Material | PVC Copper Wires |
| Frequency | 50 Hz |
| Voltage | 220 V |
| Blade Type | HSS |
| Compressed Air Connection | 4 Bar Pressure |
| Data Interface | Keypad |
| Drive System | Stepper |
| Increment For Strip Length | 0.1 mm |
| Max Outer Diameter | 2.5 mm |
| Wire Length Range | 1 - 10 meter |
| Weight | 60 kg |
| Dimensions | 465 W x 385 H x 460 D mm |
| Minimum Order Quantity | 2 |
Description
Features:
ØPVC Copper Wire Cross Section: 0.35 sq.mm to 1.5 sq.mm. Ø2 wires can be processed Max outer diameter 2.5 mm ØLength accuracy: Repeat accuracy
± (0.2 % of length> 500 & ±1 mm for length < 500mm)
ØWire length range: 1-10000mm ØShort Wire Length: Min 18 mm optional ØMax. stripping lengths: Full strip both sides 10 mm ØStraightening unit optional ØElectrical connection: 220 VAC ±5% 50/60 Hz ØCompressor required to utilized all functions of machine ØPneumatic connection for blade cleaning and tube bend action & if stripping on both sides is more than 6 mm ØMachine is Controlled with Microcontoller or PLC. ØMachine runs on imported Stepper Motors ØDimensions (W × H × D) 465 × 385 × 460 mm ØWeight: 60 kg ØSpeed 2000 (4000)wires /hr both side Cutting & stripping 100 mm length Single Wire( Double Wire)
Features:
ØPVC Copper Wire Cross Section: 0.35 sq.mm to 1.5 sq.mm. Ø2 wires can be processed Max outer diameter 2.5 mm ØLength accuracy: Repeat accuracy
± (0.2 % of length> 500 & ±1 mm for length < 500mm)
ØWire length range: 1-10000mm ØShort Wire Length: Min 18 mm optional ØMax. stripping lengths: Full strip both sides 10 mm ØStraightening unit optional ØElectrical connection: 220 VAC ±5% 50/60 Hz ØCompressor required to utilized all functions of machine ØPneumatic connection for blade cleaning and tube bend action & if stripping on both sides is more than 6 mm ØMachine is Controlled with Microcontoller or PLC. ØMachine runs on imported Stepper Motors ØDimensions (W × H × D) 465 × 385 × 460 mm ØWeight: 60 kg ØSpeed 2000 (4000)wires /hr both side Cutting & stripping 100 mm length Single Wire( Double Wire)
