Stainless Steel JUICE FLOW METER INDICATOR, For Automotive
| Material | Stainless Steel |
| Application Media | Any Liquid |
| Usage/Application | Automotive |
| Size | As per requirement |
| Temperature Range | -40 to 284 DegreeF |
| Packaging Type | Thermocouples,Corrugated as well as wooden packing |
| Accuracy | +/- 0.25% FS +/- 1 digit |
| Flow Range | As per requirement |
| Frequency | 50Hz |
| Color | Black/Siemens-grey |
| Installation Direction | located upstream of major disturbances such as control valves and pipe elbows where possible |
| Maximum Pressure Rating | 10MPa (35~85%RH) |
| Body | As per requirement |
| Line Size | As per requirement |
| Power Supply | 90-270V +/- 10%, 50+/-3 Hz. |
| Range | 0 to 100 percent |
| Response Time | As per requirement |
| Scale | 0 to 100 |
| Voltage | 1-5 VDC |
| Dimension (HXWXD) mm | As per requirement |
| Input Current | 0/4-20 mA DC |
| Surface Treatment | enzymatic treatment |
| Country of Origin | Made in India |
Feature
| Material | Stainless Steel |
| Application Media | Any Liquid |
| Usage/Application | Automotive |
| Size | As per requirement |
| Temperature Range | -40 to 284 DegreeF |
| Packaging Type | Thermocouples,Corrugated as well as wooden packing |
| Accuracy | +/- 0.25% FS +/- 1 digit |
| Flow Range | As per requirement |
| Frequency | 50Hz |
| Color | Black/Siemens-grey |
| Installation Direction | located upstream of major disturbances such as control valves and pipe elbows where possible |
| Maximum Pressure Rating | 10MPa (35~85%RH) |
| Body | As per requirement |
| Line Size | As per requirement |
| Power Supply | 90-270V +/- 10%, 50+/-3 Hz. |
| Range | 0 to 100 percent |
| Response Time | As per requirement |
| Scale | 0 to 100 |
| Voltage | 1-5 VDC |
| Dimension (HXWXD) mm | As per requirement |
| Input Current | 0/4-20 mA DC |
| Surface Treatment | enzymatic treatment |
| Country of Origin | Made in India |
Description

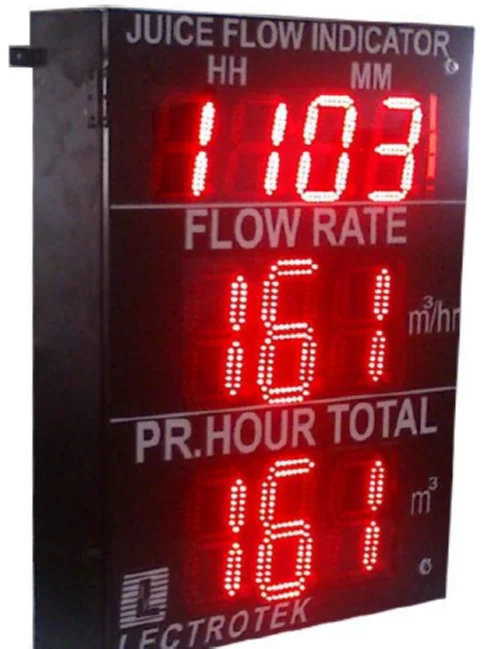

Juice Flow Indicator:-Jumbo-200-FIT are Large size indicators cum flow totalizers and belong to Lectrotek’s JUMBO-series ofmicroprocessor based large display series of displays.The instruments are innovative in terms of features, costeffectiveness and reliability and have programmable ranges from keyboard, and options such as Modbus-RTU communication and input retransmission output.The display accepts 4-20 mA or 1-5VDC inputs from flow transmitters and displays the following:1. The current flow rate2. The total flow (consumption) for the present hour and3. The total flow (consumption) for the past hour.4. Alternatively a RTC (real time clock can be provided (or additionally).
SPECIFICATIONS:-Input: 0/4-20 mA DC , 1-5 VDC, others on request.Accuracy +/- 0.25% FS +/- 1 digit Display 3-digits for flow (999 T/H max.) and last hour flow flow total (999 tons) and RTC time in HH:MM.Keyboard 4 key membrane keyboard (inside enclosure, on board) fpor operation / calibration/ range change etc.Power Supply 90-270V +/- 10%, 50+/-3 Hz.Aux power output 24Vdc, 30 mA output to power transmitters (available as standard).Communication ports (option) Rs-485 port isolated.Retransmission signal (option) Isolated & linear 0/4-20mA proportional to input flow.Control/Alarm function (option) Maximum 4 set-points/relays. OTHER PRODUCTS FOR SUGAR PLANTS
- Boiler Drum Level Indicators
- Boiler Steam Pressure indication
- Advantages over gauges for convenience,
- accuracy, calibration and no piping required
- Available with pressure transmitters 790S
Temperature Sensors & Cables
• Pt-100 RTD Sensor assemblies
• Thermocouples J, K, R, S types• Fabricated/barstock thermowells for sensors
• Thermocouple compensating cables
• RTD extension cablesTemperature Transmitters• Field-mounted blind type• Miniature head-mounted (in RTD/TC) type• Field mounting type with local indication• Microprocessor-based DIN-rail mounted type• Miniature head-mounted (in RTD/TC) typePID Controllers, Temperature Scanners• PRD station steam pressure PID controllers• Boiler 3-element Drum Level Controllers• PID Controllers for Sulphur Burners• Juice pH controllers• Temp. Scanners for columns, pans, boiler etc.Electropneumatic Converters• 4-20mA input• 3-15psi output• Built-in volume booster – up to 12 SCFM• Air filter regulators (AFRs)• Output pressure gaugesFeatures:-JUICE FLOW INDICATOR-TOTALIZER
- Indicates Juice Flow Rate, Total Flow, and Last Hour Total.
- Also available in versions with Real Time Clock
- Large Display (8” or 200mm) for viewing from distance
- Input from juice mass flow meter (4020 mA DC)
- High accuracy 0.25% FS +/†1 digit.
- Display ranges programmable.
- Weatherproof wall mounted enclosure
- Keyboard based programming, calibration and input selection
- OPTION Relay outputs for flow and total flow.
- OPTION 24V DC, 30 mA output to power transmitters
- OPTION Isolated RSâ€485 serial port
- OPTION Isolated 4â€20mA PV Retransmission output
- Other versions with 4â€digit flow displays & 6â€digits total flow
- displays also available
- Also available for Boiler Steam Flow Generation &
- Consumption in current hour and Last hour.
Applications• Boiler Steam Flow and Totalized Flow in Sugar Plant boiler & turbine areas• Mass Flow of Cane Jine – Instantaneous, last hour total and current hour total till now.
