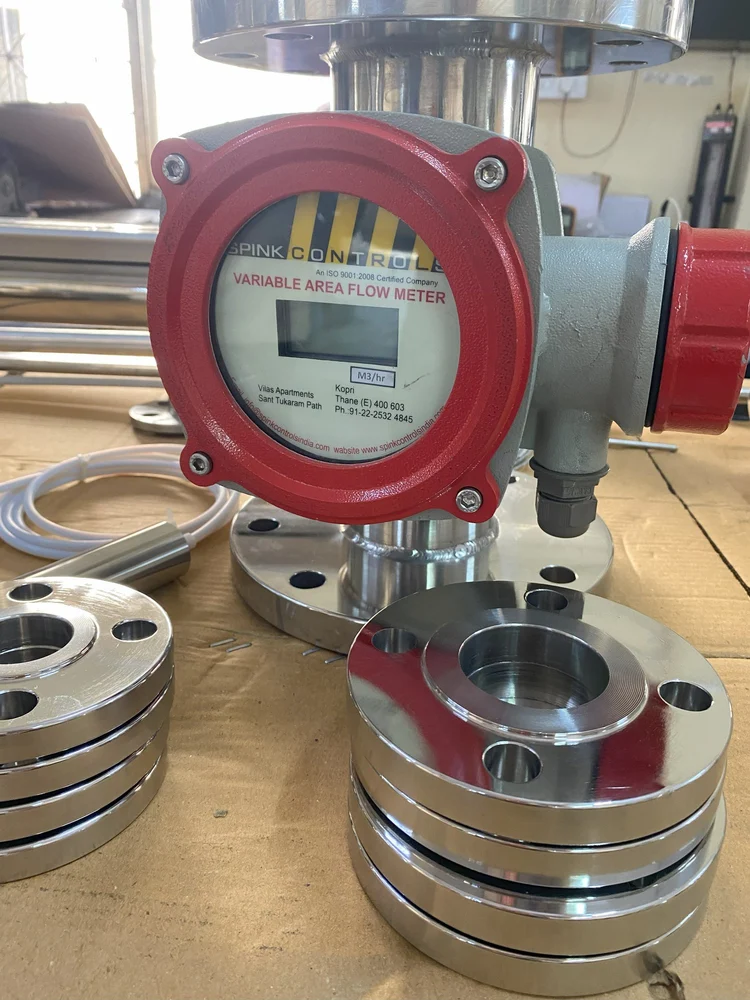

Stainless Steel Digital Metal Tube Rotameters, 100 LPH
| Tube Body Construction | Stainless Steel |
| Range Ability | 100 LPH |
| Model Name/Number | SC/R-300 |
| Brand | Spink Controls |
| Float Material | SS 304 |
| Operating Pressure | 80 kg/cm2 |
| Maximum Temperatures | 120 deg C |
| Common Mode Voltage | 24 VDC |
| Usage | To Measure The Flow Of Liquid, Gas And Steam |
| Minimum Order Quantity | 2 Piece |
Feature
| Tube Body Construction | Stainless Steel |
| Range Ability | 100 LPH |
| Model Name/Number | SC/R-300 |
| Brand | Spink Controls |
| Float Material | SS 304 |
| Operating Pressure | 80 kg/cm2 |
| Maximum Temperatures | 120 deg C |
| Common Mode Voltage | 24 VDC |
| Usage | To Measure The Flow Of Liquid, Gas And Steam |
| Minimum Order Quantity | 2 Piece |
Description

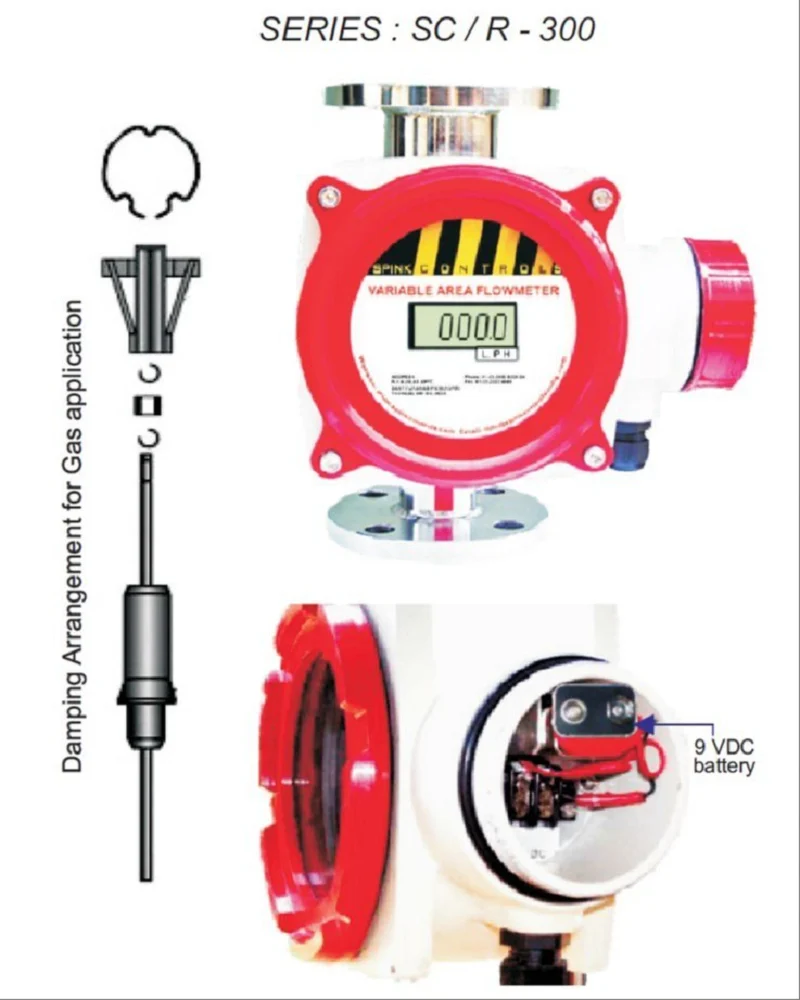

It operates on the principal of variable area; the fluid in the metal tube raised a float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized, when the weight of the float is balanced by the upward hydraulic force. By a magnetic coupling the inner float moment througha series of linkages and counter weight. The tube and the float combination determine the Flowrate.Digital Meter : The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout As such this flowmeter does not require any electrical connection, since it operates on battery. It has an inbuilt two wire transmitter provide 24 VDC and take 4-20 mA Signal.
Benefits Of Spink Controls Digital Variable Area Flow Meters:-
- Local Indication without the need for auxilary power
- Minimum pressure loss.
- Easy to read.
- 3 Suitable for low ?ow (10LPH) and High Flow 150 m /hr
- Default inbuilt transmitter of 4 - 20mA (Loop Powered)
- No movement assembly reducing the maintenance.
Technical Specifications:-
15 NB to 150 NB
Accuracy: +/- 1.5% of FSR.
Repeatibility: +/- 0.5% of FSR
Temperature Rating:--50 to 120 °C.
Pressure Rating: 80 kg/cm2
Flow Direction: Bottom To Top
End Connection:As per Customers
requirement
Wetted Part : To Suitable Specific liquid or gases
Mounting Positing:Vertical.
Indication: Digital Flow Rate
Transmission: 2 Wire Loop Powered
Enclosure: Ex d IIB T4 IP67
Power Supply : 24VDC
