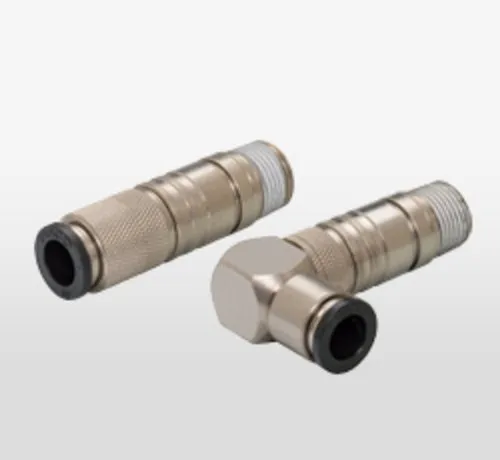

SS 316 Pisco Japan Die Temperature Control Fitting, For Pneumatic Connections
| Size | R1/8, R1/4, R3/8, R1/2 |
| Usage/Application | Pneumatic Connections |
| Material | SS |
| Material Grade | 316 |
| Type | Die Temperature Control Fitting |
| Color | Silver |
| Minimum Order Quantity | 30 Piece |
Feature
| Size | R1/8, R1/4, R3/8, R1/2 |
| Usage/Application | Pneumatic Connections |
| Material | SS |
| Material Grade | 316 |
| Type | Die Temperature Control Fitting |
| Color | Silver |
| Minimum Order Quantity | 30 Piece |
Description
(No freezing) (No freezing) (No freezing)
| Fluid medium | Air, Water (Clean water/Conditional*) | Heat medium oil (Conditional*) | ||||
|---|---|---|---|---|---|---|
| Max. operating pressure | 0.9MPa | |||||
| Max. vacuum | -100kPa | |||||
| Operating temp. range | 0~60 | Degree Celsius | 0~99 | Degree Celsius | 0~120 | Degree Celsius |
* Please refer to the digital catalogue.Push-in Fitting type
| Tube O.D. (mm) | ø6, ø8, ø10, ø12 |
|---|
Female Thread type
| Taper pipe female screw | Rc1/8, Rc1/4, Rc3/8 |
|---|
Barb Fitting type
| Tube I.D. | 1/4, 3/8 |
|---|
Thread size (Socket)
| Taper pipe male thread | R1/8, R1/4, R3/8, R1/2 |
|---|
- Details
Molding Die Temperature control coupling
Push the release sleeve and remove the joint part, then you see no projection on the die.
- Nickel-plated brass is used for the metal body and HNBR for the seal material.Thermal oil, clean water and air can be admitted.
- Fitting part can be removed from thread part.Prepare the molding die according to the thread size, bury the threaded part in the die, using an Allen wrench, and then just fit in the joint part. Push the release sleeve and remove the joint part, then you see no projection on the die.
- With the stop valve built-in type, the fluid (e.g. hot water ) does not spill at the installation or removal of the joint.
