Spiral Duct Forming Machine
Spiral Duct Forming Machine Performance Features:
|
Model |
Diameter range |
Thickness range(mm) |
Width(mm) |
Feeding speed(m/min) |
Power(kw) |
Weight(kg) |
Dimensions(mm) L*W*H |
|
BAL-1500 |
100~1500 |
0.5~1.2 |
137 |
0~35 |
16 |
2000 |
3900*3550*1800 |
|
BAL-1500C |
80~1500 |
0.4~1.2 |
137~140 |
1~45 |
9.5 |
2200 |
2700*1700*2300 |

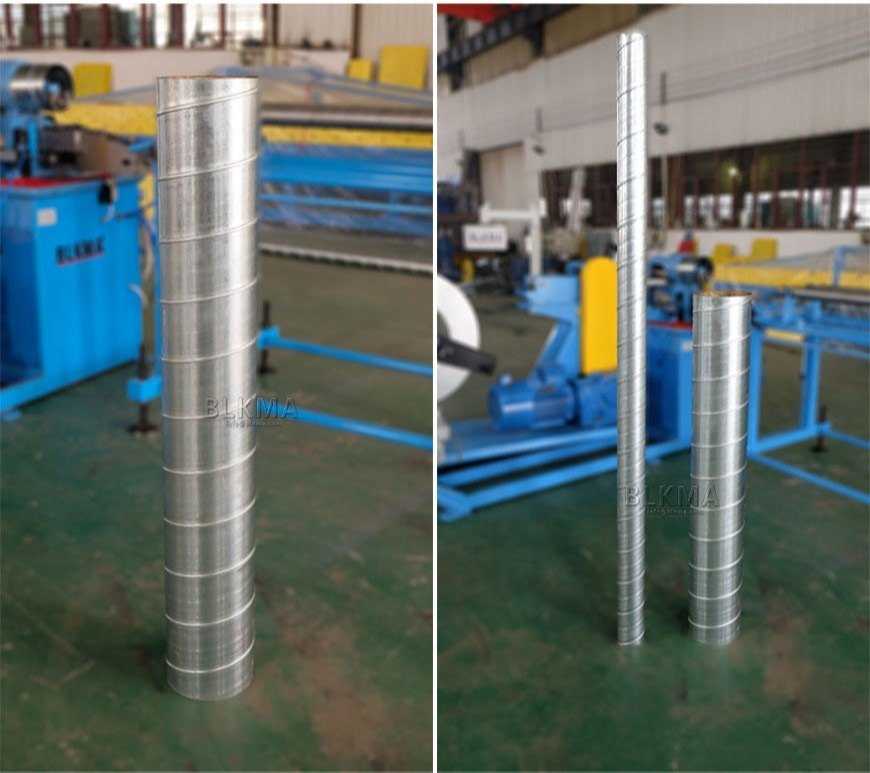

In a given processing of the diameter of the spiral duct diameter scope, the need for pipe die, using different lengths of steel belt, through the proper installation and debugging steel band instead of pipe die. The diameter of the product determines the speed of production, the smaller the diameter, the faster the production speed, on the contrary, the larger the diameter, the slower the production speed, because of the large diameter of the spiral duct, the load on the machine is higher. The length and can be used according to demand, and high-speed synchronous automatic cutting system for cutting.
Spiral Duct Forming Machine Main Import Configuration:
· Siemens control system from Germany
· Schneider electric system from Germany
· "FESTO" cylinder from Germany
· Hydraulic system from Beijing huade
· OMRON encoder from Japan
Spiral Duct Forming Machine Basic Configuration:
· One motor
· One electronic box
· One electric coil cradles
· One material trays
One Cutting die
