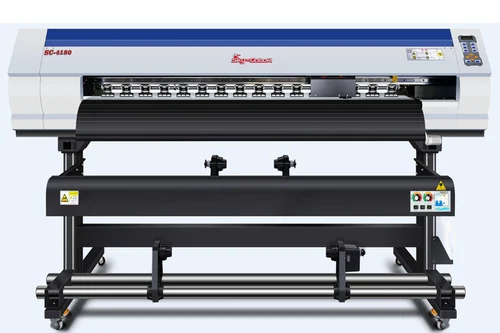

Skycolor Automatic Vinyl Printing Machine, Model/T

451275 incl. GST

Product Description

Owing to a long-term destination for our business, we are engaged in providing a quality approved gamut of Vinyl Printing Machine. It''s Simple Print Head Calibration mode can be easily mastered by operators; this printing machine is available to our customers at affordable rates with various specifications. Our offered printing machine is manufactured using top grade material and latest technology, in accordance with set quality norms. We are giving this printing machine in various customized options within stipulated time-frame.

Features:

  • Fully automatic
  • Very convenient to work at night
  • Proper functioning


Other Details:

  • 3.2 m eco solvent printer wide format the future main trend of wide format printing industry
  • Rip while printing Printing area selectable skip white printing direction
  • Foggy Print, Variable, Wave print simple Print Head Calibration mode can be easily mastered by operators
  • Micro Adjustment of Printhead Voltage specific brushless motor, stronger power, and longer work life
  • Adjustable speed, uni/bi-direction, and step value during printing
  • Operations both in computer interface and machine control panel
  • Automatic and constant ink system cleaning function
  • Options for single head cleaning or double head cleaning
  • Options for soft, normal and strong printheads sucking
  • All color channels can be exchanged freely so as to prolong the printheads life span
  • Printing resolution can reach to 2880 dpi, even the word is small as 0.5 mm
  • Three different sizes of dots, achieving the complement of point technology
  • Eliminating the granular sensation of the images, even under high speed or low resolution
  • High-quality images can be printed
  • Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media


Standard Print Speeds 1440 Dpi ’ Output In Square Feet Per Hour:

Draft Mode

500 sfph (50 smph)

Production Mode

300 sfph (30 smph)

Photo mode

240 sfph (24 smph)

Hyperfine Mode

150 sfph (15 smph)

Feature
Printing Material Vinyl, PVC, WALLPAPER
Model/Type DAKSH320TS
Printer Type Digital
Brand SKYCOLOR
Automation Grade Automatic
Resolution 540,720,1080,1440 dpi
Color Output Multi-Coloured
Model Number DM4180TS
Voltage 220
Color Printing Yes
Ink Type Eco Solvent Ink,Solvent ink-SS21,Eco Solvent ink-ES3,Water-based ink
Power 1.5kw
Warranty 1 Year
Phase Single
Printing Width 72
Capacity (square Feet/Hr) 500
Color 4 Color CMYK
Temperature (Celsius) 17-27
Dimension 4800*920*1510 mm
Weight 800/900KG
Media Flex Banner,Adhesive Vinyl,PVC,Mesh,One Way Vision,Eco Solvent Inkjet Paper,etc
Printhead Epson DX5/DX7 micro piezo and stainless steel
Condition New
Power supply 50HZ/60HZ,220V,16A
Interface USB 2.0; USB 3.0
Feeding method Equip two standard feeding/collecting systems
Computer system Win XP,Win 7,Win8
File forms Bmp,TIF,Jpg,Pdf etc
Heating system IR HEATER
Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag
Number of printhead 2
Color gamut 16.7 million
Media width 74 Inch
Print Mode 540x720 dpi,540x1080 dpi,720 x 720 dpi
RIP software Maintop 5.3/ PHOTOPRINT 11/ ONYX 11
Minimum Order Quantity 1 Set
Description

Product Description

Owing to a long-term destination for our business, we are engaged in providing a quality approved gamut of Vinyl Printing Machine. It''s Simple Print Head Calibration mode can be easily mastered by operators; this printing machine is available to our customers at affordable rates with various specifications. Our offered printing machine is manufactured using top grade material and latest technology, in accordance with set quality norms. We are giving this printing machine in various customized options within stipulated time-frame.

Features:

  • Fully automatic
  • Very convenient to work at night
  • Proper functioning


Other Details:

  • 3.2 m eco solvent printer wide format the future main trend of wide format printing industry
  • Rip while printing Printing area selectable skip white printing direction
  • Foggy Print, Variable, Wave print simple Print Head Calibration mode can be easily mastered by operators
  • Micro Adjustment of Printhead Voltage specific brushless motor, stronger power, and longer work life
  • Adjustable speed, uni/bi-direction, and step value during printing
  • Operations both in computer interface and machine control panel
  • Automatic and constant ink system cleaning function
  • Options for single head cleaning or double head cleaning
  • Options for soft, normal and strong printheads sucking
  • All color channels can be exchanged freely so as to prolong the printheads life span
  • Printing resolution can reach to 2880 dpi, even the word is small as 0.5 mm
  • Three different sizes of dots, achieving the complement of point technology
  • Eliminating the granular sensation of the images, even under high speed or low resolution
  • High-quality images can be printed
  • Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media


Standard Print Speeds 1440 Dpi ’ Output In Square Feet Per Hour:

Draft Mode

500 sfph (50 smph)

Production Mode

300 sfph (30 smph)

Photo mode

240 sfph (24 smph)

Hyperfine Mode

150 sfph (15 smph)
