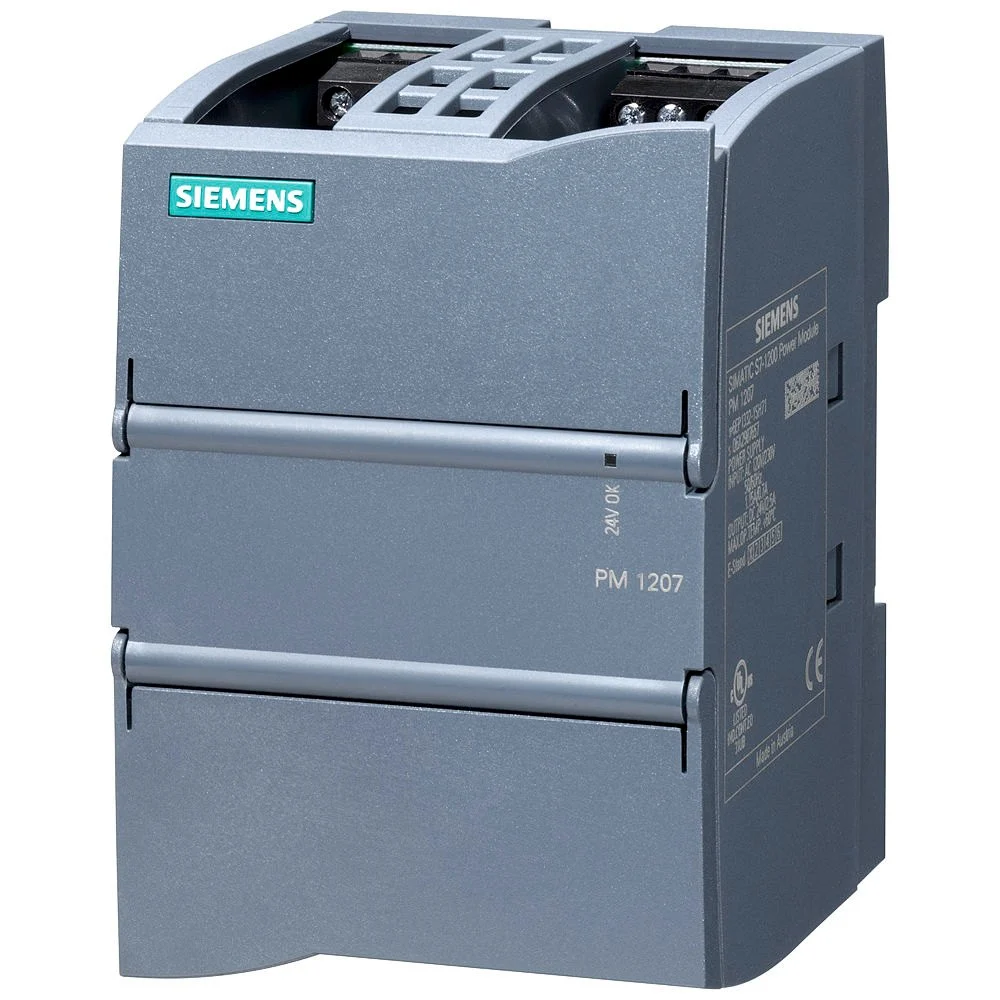

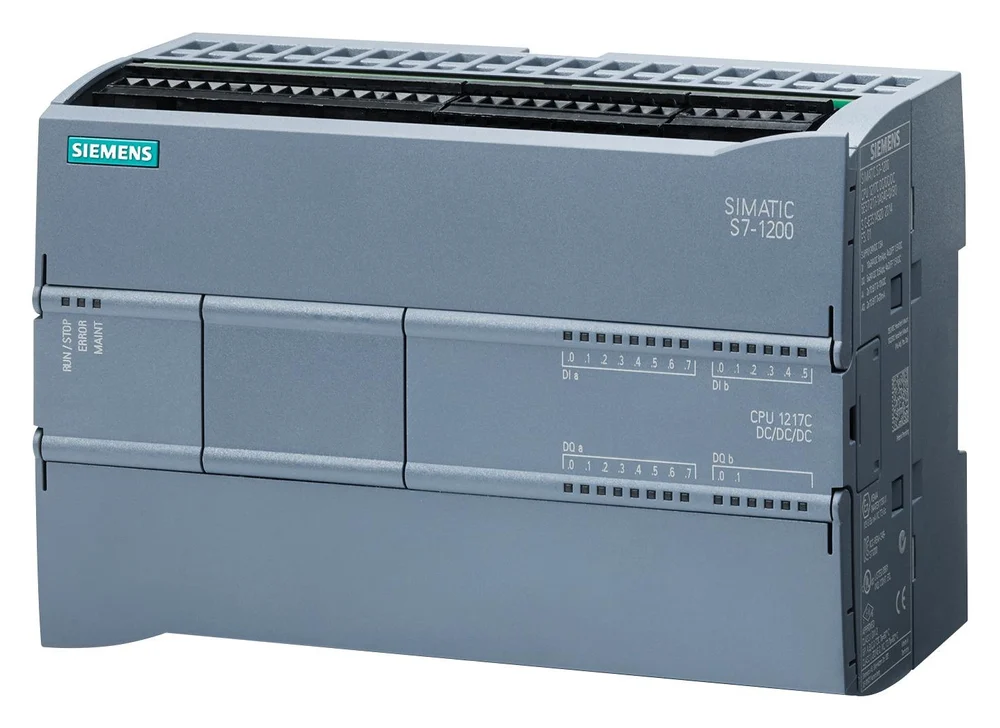

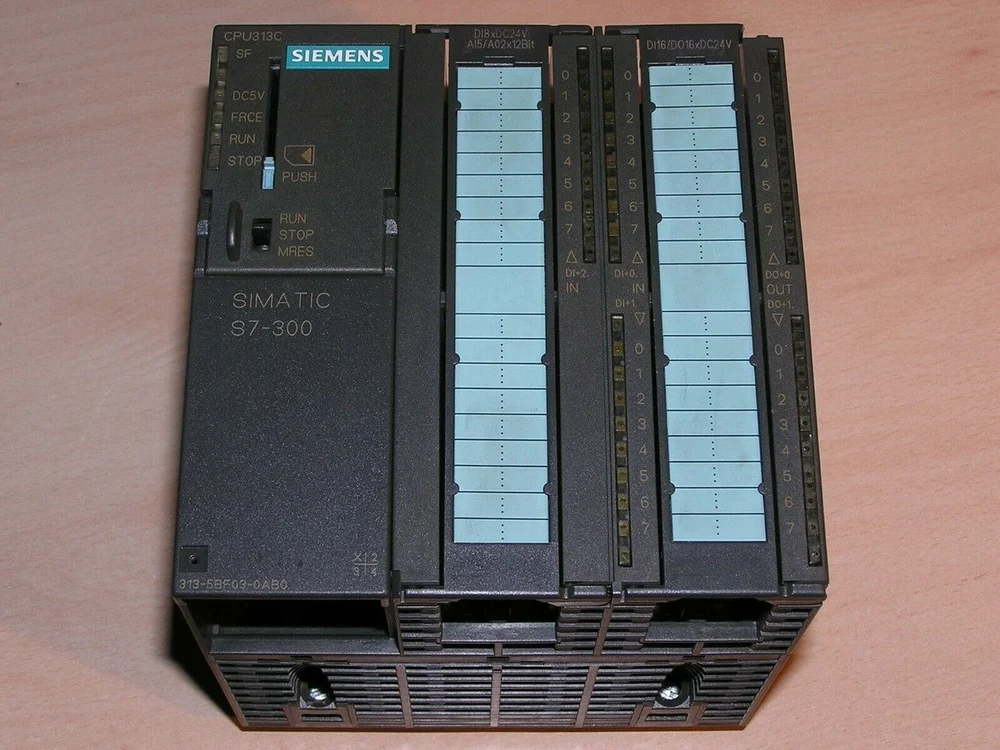

We PLC Advance Supply All Major Models Of Simens PLC Simatic S5, SIMATIC S7200, Simatic S7-1200 Simatic S7-300 Simatic S7-400 Simatic S7-300,ET200S
ALL PRODUCT WITH WORKING WITH BEST QUALITY. WARRANTY @ 1YEAR FOR ALL MATERIAL
| Communication Protocols | Profibus |
| Mounting Type | Rack Mount |
| Brand | Siemens |
| Manufacturer Series | SIMATIC S5,S7 |
| I/O Points | 24 |
| Output Type | Digital |
| Communication Port | PROFIBUS, MPI, PROFINET |
| Minimum Order Quantity | 1 Piece |
We PLC Advance Supply All Major Models Of Simens PLC Simatic S5, SIMATIC S7200, Simatic S7-1200 Simatic S7-300 Simatic S7-400 Simatic S7-300,ET200S
ALL PRODUCT WITH WORKING WITH BEST QUALITY. WARRANTY @ 1YEAR FOR ALL MATERIAL
The Thermal Dispersion Mass Flowmeter, Series Scirocco 1000 measuring principle is based on the fact that heat is drawn from a heated body when a fluid flows past.A Thermal Dispersion Mass Flowmeter contains two Platinum RTD temperature sensors for this purpose. One sensor measures the current fluid temperature as a reference. The second sensor is heated and has a constant temperature differential relative to the first sensor. When the flow of air/gas starts heat is taken away from the warmer sensor. The amount of heat taken away is having a direct relation with the mass velocity of the fluid. This eliminates the need for temperature and pressure compensation. Thermal Dispersion Mass Flowmeter, Series Sciricco 1000 is available with insertion probe type or Complete Spool type with proper end connection. Insertion probe can be installed directly on the pipe carrying compressed air, with the help of clamps supplied along with probe.
...
Luthra Gear Roll tester is used for checking Total Composite Error(TCE), Tooth to Tooth Error(TTE) of Helical and Spur Gears .
The component gear is mounted on the arbor at right side and similarly master gear or meeting part on left side. Both gears are meshed and rotated. The deflection due to composite error or tooth to tooth error is indicated on the dial gauge. Maximum Gear diameter 200 mm can be checked Gear roll tester base is made of graded cast iron FG 220 and is duly stress relieved to give maximum stability. Base is precision hand scrapped or grounded for flatness accuracy within 0.005 mm. Gear roll tester both vertical columns are hardened and ground ,aligned and parallel to get accurate results .
Hand Lever is provided for quick release ,loading and unloading of component gear.
Precision double bearing assembly is provided in arm for smooth and rigid movement.
The Thermal Dispersion Mass Flowmeter, Series Scirocco 1000 measuring principle is based on the fact that heat is drawn from a heated body when a fluid flows past.
A Thermal Dispersion Mass Flowmeter contains two Platinum RTD temperature sensors for this purpose. One sensor measures the current fluid temperature
as a reference. The second sensor is heated and has a constant temperature differential relative to the first sensor. When the flow of air/gas starts heat is taken away from the warmer sensor. The amount of heat taken away is having a direct relation with the mass velocity of the fluid.
This eliminates the need for temperature and pressure compensation.
Thermal Dispersion Mass Flowmeter, Series Scirocco 1000 is available with insertion probe type or Complete Spool type with proper end connection. Insertion probe can be installed directly on the pipe carrying compressed air, with the help of clamps supplied along with probe. Customer can drill holes by given diagram and also drilling jig can provided at extra cost.
Features
It operates on the principal of variable area; the fluid in the metal tube raised a float in the taper tube increasing the area of passage of fluid. The float moves up in proportion to the rate of flow of fluid and get stabilized, when the weight of the float is balanced by the upward hydraulic force. By a magnetic coupling the inner float moment througha series of linkages and counter weight. The tube and the float combination determine the Flowrate.Digital Meter : The inner float magnetic field is detected by the high sensitive magnetic field detection sensor, enable us to show the digital readout As such this flowmeter does not require any electrical connection, since it operates on battery. It has an inbuilt two wire transmitter provide 24 VDC and take 4-20 mA Signal.
Benefits Of Spink Controls Digital Variable Area Flow Meters:-
Technical Specifications:-
15 NB to 150 NB
Accuracy: +/- 1.5% of FSR.
Repeatibility: +/- 0.5% of FSR
Temperature Rating:--50 to 120 °C.
Pressure Rating: 80 kg/cm2
Flow Direction: Bottom To Top
End Connection:As per Customers
requirement
Wetted Part : To Suitable Specific liquid or gases
Mounting Positing:Vertical.
Indication: Digital Flow Rate
Transmission: 2 Wire Loop Powered
Enclosure: Ex d IIB T4 IP67
Power Supply : 24VDC
