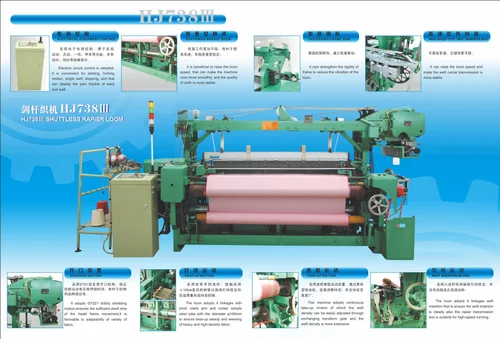

Shuttleless Rapier Loom Machine

We are the reckoned dealer of wide assortment of Rapier Type Shuttleless Loom LJ 304. The offered machine is ideal for controlling the direct-current linear motor to monitor the horizontal needle to up and down that can achieve electronic reading precision is reliable and adopts rotary dobby which is beneficial to run at high speed. This machine is highly appreciated for its low power consumption, easy operations and longer working life. Our offered machine comprises products like beating – up device, frame structure, independent leno selvedge device and many more.

Specifications:

• Speed : 300r/min-320r/min

• Reed Width : 1900mm

• Electronic Let-Off Device : Numerical electronic let-off is adopted, warp tension is stable in the weaving process, each time to start the loom, it can achieve to trace the warp tension automatically.

• Beating-Up Device : Beating-up by high precision conjugate cam and short sword, it can ensure to beat-up precisely and powerfully, while weave the fabric of thick and high weft density.

• Take-Up Motion : It adopts cycle drive reducer and has the feature of compact structure and high mechanical efficiency, and of low cost that can avoid excessive cumulative error of transmission.

• Independent Leno-Selvedge Device : This device can weave the substantial selvage, because of it has the feature of independent structure and is easy to operate and adjust, in especial for weaving elastic fabric.

• Frame Structure : The frame is supported by solid base it can strengthen the rigidity of the frame to reduce the vibration of the loom that ensure the loom to run at high speed.

• Electronic Dobby : Electrical control cabinet control the direct-current linear motor to monitor the horizontal needle to up and down that can achieve electronic reading precision is reliable, and it adopts rotary dobby which is beneficial to run at high speed.

• Lubricating Device : Pressure lubrication is adopted in dobby device and main transmitting motion.
