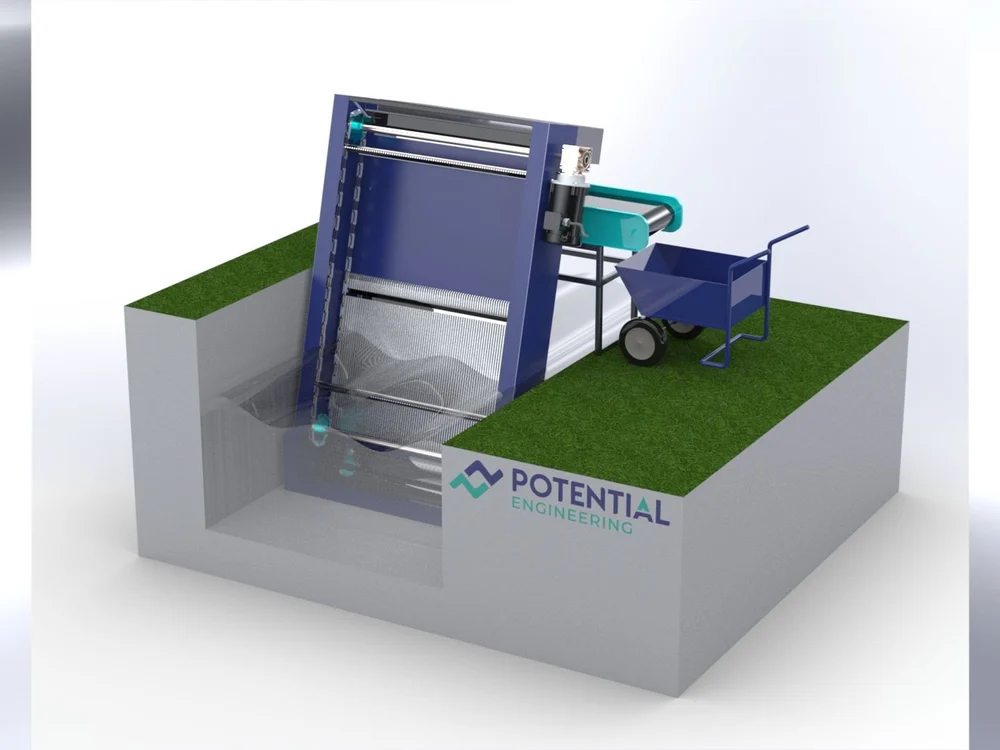

Sewage Water Multi Rack Screen

Multi rack screens are widely deployed at the entrance of the hydraulic structure, water intake, and pumping stations to trap flowing debris which can instigate downstream trouble. These screens are perfectly suited to serve industrial, municipal & process water screening. These are most favourable for high solid loads. The equally spaced inclined bars arrest the debris. The cleaning element consists of a comb, screwed to the drive chain. The chain is with an optional overload protection device.

Specifications

1. Bar Spacing : 6 mm and above
2. Channel Width : 600 mm to 2500 mm
3. Channel Depth : Up to 15 m
4. Operation : Motorized
5. MOC : CS/ SS/ Other material, on request

 Features

1. Customized design
2. Easy to install
3. Low maintenance
4. Safe operation in hazardous areas
5. Spares are easily available
