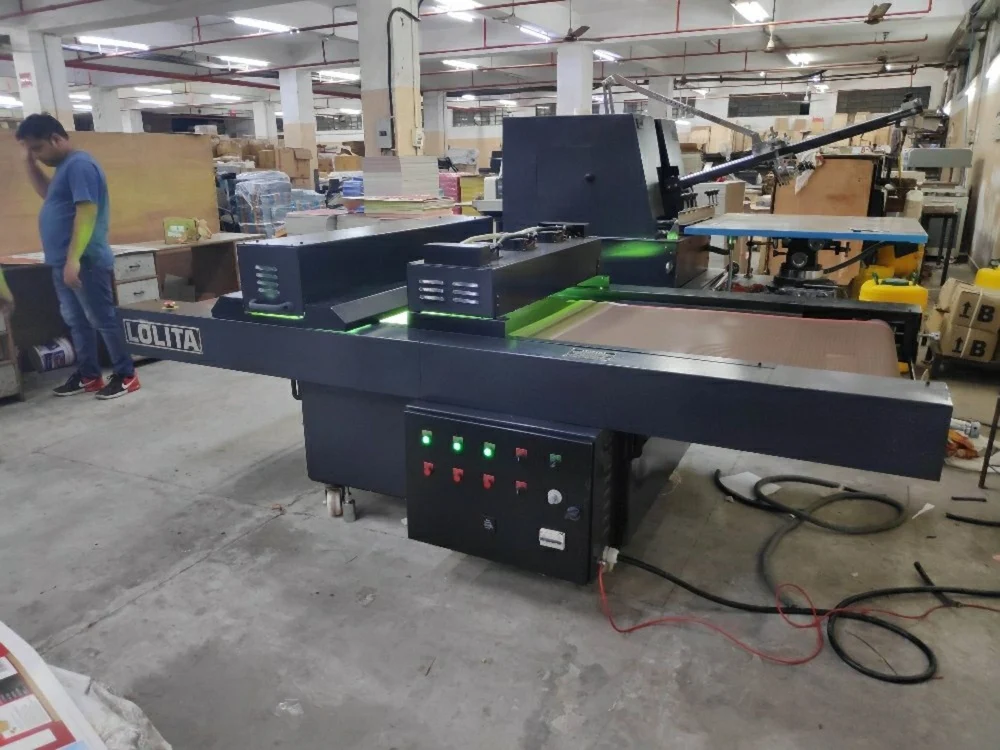

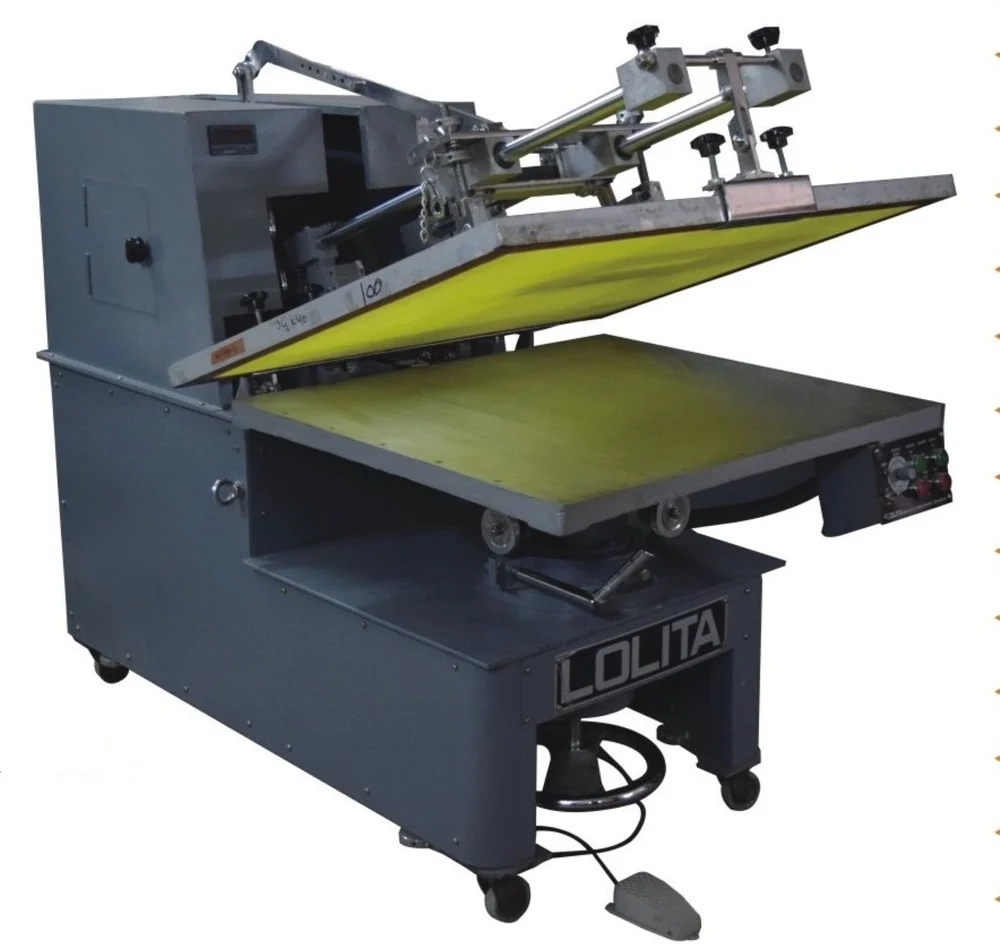

Semi Automatic Spot UV Coating Machine, 440 V Three phase
220000
incl. GST
We are one of the leading manufacturers, exporters and suppliers of optimum quality Semi Automatic Spot UV Coating Machinethat is used in printing industry. It is operated with a technique that requires image transference from a plate to a rubber blanket and then again to the printing surface.
Properties:
- Unrivaled print standard sole worked in required to run the machine
- Simple alterations and easy running for motley
- Longer and short press strokes are smoothly obtainable by adjusting the length of the rod
- Changeable speed is acquirable by the tread low manual wheel pace modifier. Printing revolution is as well readily changeable by the timekeeper configuration
- Base switch for running and stooping the machine
- Void reception of paper for appropriate arrangement
- Vacuity break off mechanically
- Vacuum shelve is uprightly fixed backward, forward, right, left, down and up
- Electric automation accounting
- Our product can print on several plain base such as on plastic sheets, metal sheets, papers and so forth
- Aluminum or wooden frames are essential
Specification:
| Model | Minopet L-600 | L-800 |
| Maximum print area | Inches 15"x 22" (381 x 559 mm) | Inches 18" x 24" (456 x 610 mm) |
| Vacuum Table Format | Inches 25 ½ " x 25 ½ " ( 648 x 648 mm) | Inches 27 ½ x 27 ½ " (698 x 698 mm) |
| Maximum Frame Size | Inches 24" x 30" (610 x 762 mm) | Inches 30" x 30" (762 x 762 mm) |
| Impression Per Hour | 960 to 1200 | 962 to 1200 |
| H.P Machine | 1 H.P | 1 H.P |
| H.P Vacuum | 0.5 H.P | 0.5 H.P |
| Power Required | 220-250V Single phase | 220-250V Single phase |
| 440 V Three phase | 440 V Three phase | |
| Maximum machine Size | H-47" or 1194 mm | H-47" or 1194 mm |
| L-55" or 1397 mm | L-55" or 1397 mm | |
| B-26" or 659 mm | B-26" or 659 mm | |
| Weight | Approx 300-325 Kgs | Approx 300-325 Kgs. |
