Semi-Automatic ms /ss Plate Rolling Machine 25 Mm,
| Type of Rolling Machine | Sheet Rolling Machine |
| Production Capacity | 10-15 ton/day |
| Material | ms /ss |
| Rolled Shape | Tube |
| Max Bending Radius | 1 meter to 20 meter |
| Automatic Grade | Semi-Automatic |
| Automation Grade | Semi-Automatic |
| Machine Type | Cold Rolling Mill |
| Brand | VMC |
| Length | 2 ft to 20 ft |
| Power Source | 3 ph |
| Sheet Thickness | 2 mm to 50 mm |
| Minimum Order Quantity | 1 |
Feature
| Type of Rolling Machine | Sheet Rolling Machine |
| Production Capacity | 10-15 ton/day |
| Material | ms /ss |
| Rolled Shape | Tube |
| Max Bending Radius | 1 meter to 20 meter |
| Automatic Grade | Semi-Automatic |
| Automation Grade | Semi-Automatic |
| Machine Type | Cold Rolling Mill |
| Brand | VMC |
| Length | 2 ft to 20 ft |
| Power Source | 3 ph |
| Sheet Thickness | 2 mm to 50 mm |
| Minimum Order Quantity | 1 |
Description
We are manufacturer and supplier of Plate Rolling Machine that is appreciated among the clients for optimum quality and high strength. They are durable in nature and are in adherence with set industrial standards. They are manufactured using quality assured raw components and advanced technologies thereby ensuring its flawlessness.
Features:
- Easy to maintain and useful for various job
- Modern design and rigid structure
- Simple mechanism that even semi-skilled worker can do an accurate job
- Entire machine is made out of quality prime materials
- Only top roll pressing (Up-Down) and opening -closing of drop -end are through hydraulic system & cylinders all other operations are carried out mechanically in hydro mechanical version. In mechanical version Top Roll Pressing is manually and opening/closing of end-dropper is manual or motorized
- Very useful for getting cylindrical shapes and boner performance. It works with 3 Rolls Pyramid principals. Bottom rolls are fixed and driven by Gears and worm Reduction gear. Top roll rotates in fixed position and can be adjusted up & down manually by adjustable screws.
- Housing are made from M. S. Plate of suitable strength and mounted on heavy based frame. Rolls are made from Carbon Steel (EN8,EN9,Similar) and perfectly machined for accurate result for correct feeding and grip axial grooves are provided on bottom rolls. Screw jack is given to keep top roll horizontal when formed shall is to take out.
Steps of Bending Operations:
- The plate can be bent on machine by hammering as shown if the thickness of the plate is half than rated capacity. Thicker plates should be prudent outside the machine
- Place the Plate between bottom and top roles by adjusting top roll manually
- Lower the top roll and give pressure on the plate, then start main motor in clockwise direction till one end of the plate comes over first bottom role Reverse the Motor and get second end on second bottom
- Continue above process until you get desired shape.
Related Products
5 ton/day Section Rolling Machine
5 ton/day Section Rolling Machine in Mumbai
...
MS SS Himalaya Type Double Prepinching Type Plate
Himalaya type 3 roller double prepinching type ...

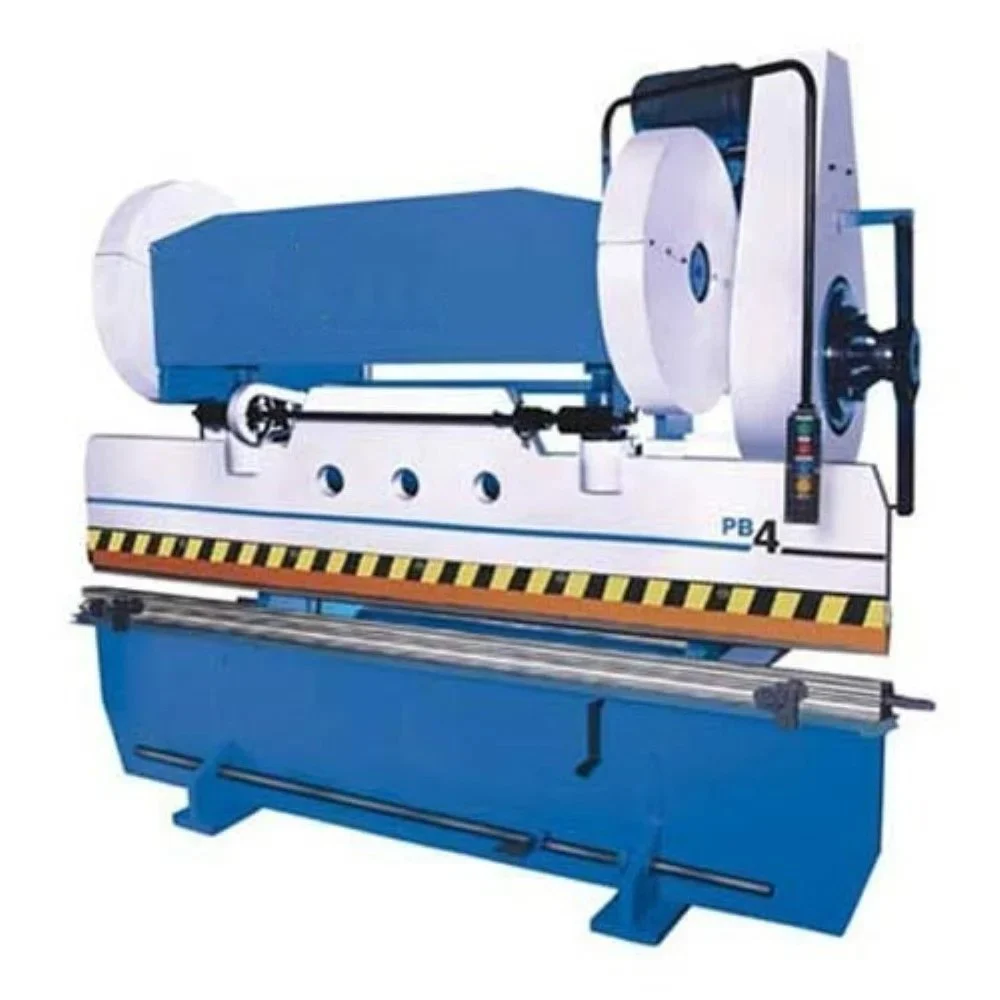

Mechanical Press Brake, For Sheet Bending, Automat
