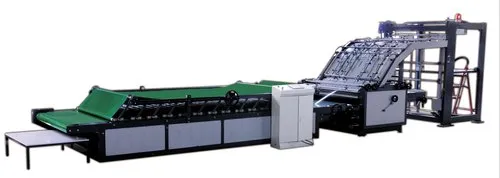

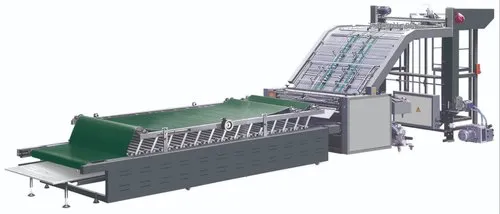

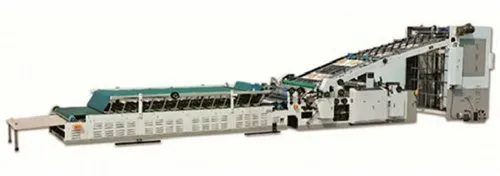

Semi Automatic Flute Lamination Machine
Usage/Application | Industrial |
Model Name/Number | BZJ-Q3-1600 |
Brand | VMPPM |
Automation Grade | Semi- Automatic |
Weight | 4000 kg |
Laminating speed | 100 m/min |
Frequency | 60Hz |
Power Consumption | 450kW |
Working Speed | 90 Pieces Per Minute |
Power | 7.5kw |
Min. Sheet Size | 500 x 500mm |
Dimension | 10000x2300x2200mm |
Voltage | 340 V |
Size | 1300 x 1100mm |
Motor Power | 10 HP |
Machine Body Material | MS |
Max. Sheet Size | 1600 x 1450mm |
Minimum Order Quantity | 1 Piece |
Feature
Usage/Application | Industrial |
Model Name/Number | BZJ-Q3-1600 |
Brand | VMPPM |
Automation Grade | Semi- Automatic |
Weight | 4000 kg |
Laminating speed | 100 m/min |
Frequency | 60Hz |
Power Consumption | 450kW |
Working Speed | 90 Pieces Per Minute |
Power | 7.5kw |
Min. Sheet Size | 500 x 500mm |
Dimension | 10000x2300x2200mm |
Voltage | 340 V |
Size | 1300 x 1100mm |
Motor Power | 10 HP |
Machine Body Material | MS |
Max. Sheet Size | 1600 x 1450mm |
Minimum Order Quantity | 1 Piece |
Description
Vacuum suction for bottom sheet feeding and manual feeding for top sheet.
2. Servo motor and PLC are used to control feeding.
3. Surface paper stacking height could be 1.5m.
4. Stacking table can lift automatically when feeding.
5. Front stop for positioning.
6. Automatic glue supplying and circulating.
7. Automatic counter.
8. Synchronous belt for transmitting, can keep high laminating precision.
9. Curved sheet can be processed on this machine.
