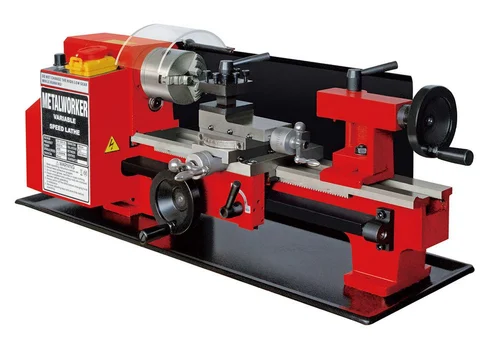

SC2 Mini Lathe Machine 500 W 180 mm

incl. GST



SC2 Mini Lathe Machine, complete with standard accessories like 80 mm 3-jaw Chuck, MT 2 centre, change gear set, wrench set, oil can and electrical.


Model No.300350

Swing over bed 180 mm 180 mm
Distance between centers 300 mm 350 mm
Hole through spindle 20 mm 20 mm
Cross slide travel 65 mm 65 mm
Compound travel 55 mm 55 mm
Spindle taper MT3 MT3
Tailstock taper MT2 MT2
Spindle speed (variable speed) 100-2500 ±10% rpm 100-2500 ±10% rpm
Motor output power (Brushless motor) 500 W 500 W
Range of threads - Metric version 0.4-2.0 mm (10 thread pitches) 0.4-2.0 mm (10 thread pitches)
Imperial version 12-52 TPI (18 thread pitches) 12-52 TPI (18 thread pitches)
Overall dimension (LxWxH) 720 x 300 x 290 mm 800 x 290 x 290 mm
Weight (Net/Gross) 44/51 kg 50/55 kg
Packing Size (LxWxH) 780 x 420 x 390 mm 870 x 360 x 380 mm

Feature
Lathe Machine Type Horizontal Lathe
Max Swing Over Bed 180 mm
Model No. SC 2
Cross Slide Travel 65 mm
Power(W) 500 W
Hole through Spindle 20 mm
Distance between Centers 300-350 mm
Minimum Order Quantity 1
Description



SC2 Mini Lathe Machine, complete with standard accessories like 80 mm 3-jaw Chuck, MT 2 centre, change gear set, wrench set, oil can and electrical.


Model No.300350

Swing over bed 180 mm 180 mm
Distance between centers 300 mm 350 mm
Hole through spindle 20 mm 20 mm
Cross slide travel 65 mm 65 mm
Compound travel 55 mm 55 mm
Spindle taper MT3 MT3
Tailstock taper MT2 MT2
Spindle speed (variable speed) 100-2500 ±10% rpm 100-2500 ±10% rpm
Motor output power (Brushless motor) 500 W 500 W
Range of threads - Metric version 0.4-2.0 mm (10 thread pitches) 0.4-2.0 mm (10 thread pitches)
Imperial version 12-52 TPI (18 thread pitches) 12-52 TPI (18 thread pitches)
Overall dimension (LxWxH) 720 x 300 x 290 mm 800 x 290 x 290 mm
Weight (Net/Gross) 44/51 kg 50/55 kg
Packing Size (LxWxH) 780 x 420 x 390 mm 870 x 360 x 380 mm
