Sanitary Grade Electromagnetic Flow Meter
| Model Name/Number | SG-SROAT |
| Brand | manas microsystems |
| Accuracy | 0.5% of reading from 100% to 10% flow rate |
| Flow Velocity Range | 0.1 m/s to 10m/s. (Higher velocities can be catered on request) |
| Power Supply | 110V AC 50/60 Hz (Standard) |
| Power Rating | 10VA Max |
| Ingress Protection | IP 68 for Primary Flow Sensor |
| Pressure | 40 Bar max |
| Media Temperature | 150 deg C max |
| Ambient Temperature range | 4 to 50 deg C |
| Pipe Material | SS 304 |
| Liner Material | PTFE Food Grade |
| Electrodes Material | SS 316L |
| Coil Housing Material | SS 304 |
| End Connections Material | SS 304 |
| Type of Transmitter | SROAT1000A |
Feature
| Model Name/Number | SG-SROAT |
| Brand | manas microsystems |
| Accuracy | 0.5% of reading from 100% to 10% flow rate |
| Flow Velocity Range | 0.1 m/s to 10m/s. (Higher velocities can be catered on request) |
| Power Supply | 110V AC 50/60 Hz (Standard) |
| Power Rating | 10VA Max |
| Ingress Protection | IP 68 for Primary Flow Sensor |
| Pressure | 40 Bar max |
| Media Temperature | 150 deg C max |
| Ambient Temperature range | 4 to 50 deg C |
| Pipe Material | SS 304 |
| Liner Material | PTFE Food Grade |
| Electrodes Material | SS 316L |
| Coil Housing Material | SS 304 |
| End Connections Material | SS 304 |
| Type of Transmitter | SROAT1000A |
Description
- The Series SG-Sroat of Electromagnetic Flow Meters is specifically designed for measurement of food liquids like milk, cream, juices of various fruits, pharma liquids etc.
- It is available with integral or remote version of transmitter.
- The transmitter can have built-in or remote totalizer display. Suitable end connections of SMS Union or DIN Union or Tri-clover Clamp is given as per customer's requirements.
- Special models are available for mounting on Milk Tankers.
Specifications:
| Size (DN) | m³/Hr | LPM | LPS |
| 25 | 1.767 | 29.452 | 0.49 |
| 32 | 2.895 | 48.254 | 0.804 |
| 38 | 4.523 | 75.398 | 1.256 |
| 51 | 7.068 | 117.809 | 1.963 |
| 63.5 | 11.945 | 199.098 | 3.318 |
| 76.1 | 18.095 | 301.592 | 5.026 |
| 101.6 | 28.274 | 471.238 | 7.853 |
| 104 | 28.274 | 471.238 | 7.853 |

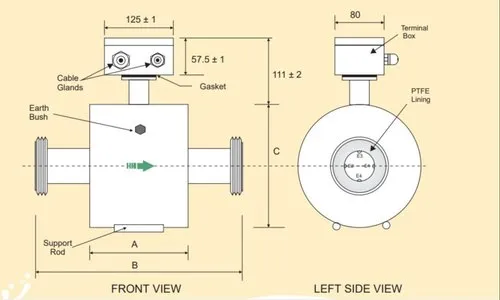

Technical Details:
| Meter Size (DN) | A | B | C | D |
| 25 | 80 | 200 | 135 | 25 SMS |
| 32 | 100 | 200 | 140 | 32 SMS |
| 38 | 100 | 200 | 140 | 38 SMS |
| 51 | 105 | 200 | 210 | 51 SMS |
| 63.5 | 105 | 200 | 215 | 63.5 SMS |
| 76.1 | 105 | 200 | 220 | 76.1 SMS |
| 101.6 | 130 | 250 | 305 | 101.6 SMS |
| 104 | 130 | 250 | 305 | 104 SMS |
