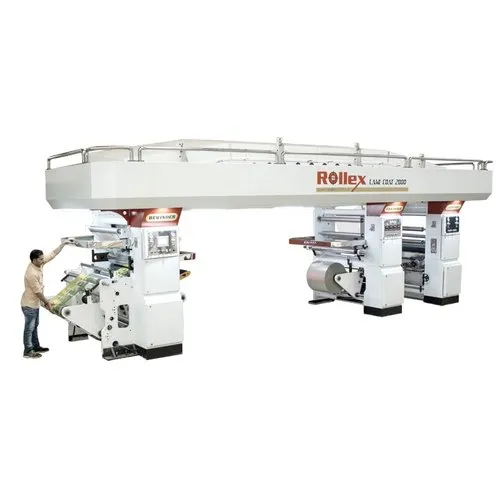

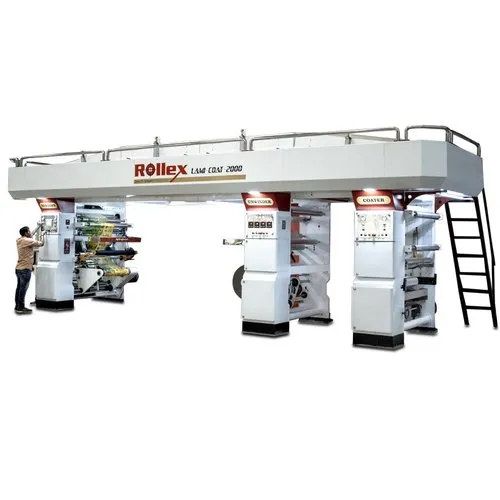

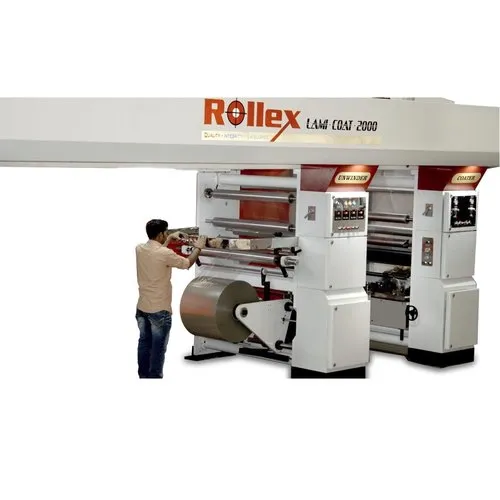

Rollex Lemi-Cot-2000 Dry Lamination Machine
| Brand | Rollex |
| Weight | 19000 kg |
| Oven Heating Power | 30 Kw |
| Oven Heating Length | 8000 mm |
| Total Power | 70 Kw |
| Dimension H x W x L | 3385 X 2746 X 9276 mm |
| Core Diameter | 76mm / 3" & 152 mm / 6" |
| Speeds At a Limit of | +- 50mm |
| 6 Drive System | AC Motor |
| Oven System | Electric Heating Type |
| Laminating Width | 1000 mm |
| Model | LEMI-COAT-2000 |
| Unwind web width | 1050 mm |
| Maximum Mechanical Speed | 200 MPM |
| Maximum Diameter of Material | 800 mm (Unwind & Rewind) |
| Inside Diameter of Roll Core | 76 / 3" and 152 / 6" |
- Heavy Duty Frame Structure Design
- Touch Screen Panel with Graphic, of various Parameters & Interlock Menus to set Various Production data. Graphical Menu is easy to understand & user-friendly
- PLC Controlled Machine
- Digital Edge Guide of which would continuously guide the web at all the speeds at a limit of ±50mm.
- Pressure Roll with liner guide ways System
- Doctor Blade fast change over and Pneumatic operated with multi angle and left right shuttle.
- Heavy Duty Frame Structure Design
- Law friction dynamic balance guide roll.
- Low friction ball screw for side & length linner compensator.
- Pneumatically Lay on Roll with counter balance.
- The Unwinder is an Integrated Shaft less type. It shall be capable of clamping the reels of Core Diameter of 76mm / 3” & 152 mm / 6” with Easy and Changeover of Reel.
- Unwinder 1, Unwinder-2 and Rewinder are Shaft less.
- 4 segment pneumatic open oven tunnel, temperature control every segment intelligently for various material and energy-saving.
- Main Drive, Unwind-1, Unwind-2, Rewind, Dryer Roller. : AC Motor
Feature
| Brand | Rollex |
| Weight | 19000 kg |
| Oven Heating Power | 30 Kw |
| Oven Heating Length | 8000 mm |
| Total Power | 70 Kw |
| Dimension H x W x L | 3385 X 2746 X 9276 mm |
| Core Diameter | 76mm / 3" & 152 mm / 6" |
| Speeds At a Limit of | +- 50mm |
| 6 Drive System | AC Motor |
| Oven System | Electric Heating Type |
| Laminating Width | 1000 mm |
| Model | LEMI-COAT-2000 |
| Unwind web width | 1050 mm |
| Maximum Mechanical Speed | 200 MPM |
| Maximum Diameter of Material | 800 mm (Unwind & Rewind) |
| Inside Diameter of Roll Core | 76 / 3" and 152 / 6" |
- Heavy Duty Frame Structure Design
- Touch Screen Panel with Graphic, of various Parameters & Interlock Menus to set Various Production data. Graphical Menu is easy to understand & user-friendly
- PLC Controlled Machine
- Digital Edge Guide of which would continuously guide the web at all the speeds at a limit of ±50mm.
- Pressure Roll with liner guide ways System
- Doctor Blade fast change over and Pneumatic operated with multi angle and left right shuttle.
- Heavy Duty Frame Structure Design
- Law friction dynamic balance guide roll.
- Low friction ball screw for side & length linner compensator.
- Pneumatically Lay on Roll with counter balance.
- The Unwinder is an Integrated Shaft less type. It shall be capable of clamping the reels of Core Diameter of 76mm / 3” & 152 mm / 6” with Easy and Changeover of Reel.
- Unwinder 1, Unwinder-2 and Rewinder are Shaft less.
- 4 segment pneumatic open oven tunnel, temperature control every segment intelligently for various material and energy-saving.
- Main Drive, Unwind-1, Unwind-2, Rewind, Dryer Roller. : AC Motor
Description
Rollex Machinery Private Limited. Dry Laminating Machine Model :-Lemi-Coat-2000 Adopting PLC German Siemens (Programmable logical Controller) system with humanized machine interface Touch screen of which allow the easier operation and also improves the quality of laminating efficiency.
