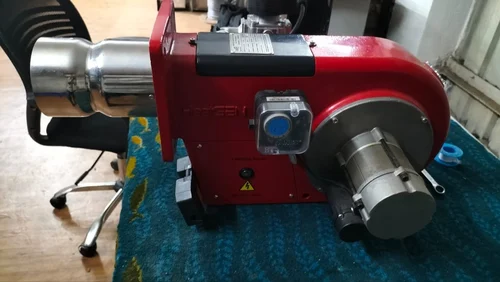

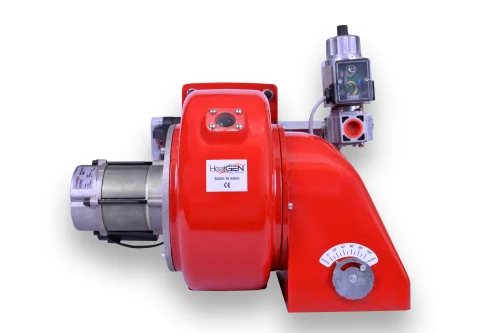

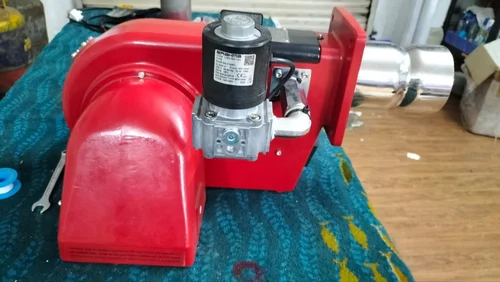

Robust Aluminum Industrial Gas Burner
60000
incl. GST
Available in versions up to 250 KW for different types of gas. A compact burner, easy to install. Precise conventional air inlet. Designed for easy maintenance. Industry-standard components are used. A soft pulsation free start. Wide adjustment range and high efficiency with constant combustion values. Totally enclosed control Panel.
- Robust Aluminum body
- Energy-saving and compatible with environmental requirements.
- Quiet in operation and designed for easy maintenance.
- Reliable and trouble-free.
- Fan at high pressurization with forward curved blades;
- Combustion head with adjustment at high performance and elevated flame stability equipped with inox steel blast tube and steel diffuser disc;
- Compact overall dimensions and disposition rationalized of the components with accessibility facilitated for the operations of setting and maintenance.
- Inbuild Flange and insulating gasket for fixing at Industrial Heating Appliance.
- Single phase power supply;
- Safety air pressure switch to stop the burner in lock-out in case of failed or anomalous fan operation;
- Ionization probe for flame detection;
- IP 40 electric protection level;
- Selection of high-quality servomotor for ideal air-fuel mixture and highly efficient combustion. Servomotor for air shutter and for the consent of the 2nd stage gas valve.
- Optional Gas train with safety valve class A.
