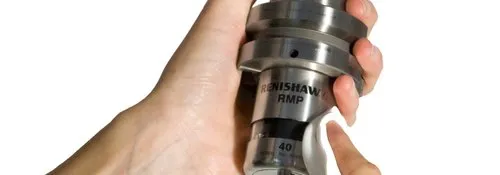

Renishaw RMP40 250 g Radio Transmission Probe
| Brand | Renishaw |
| Sealing | IPX8 (EN/IEC 60529) |
| Battery Standby Life | 290 Days Maximum,Dependent On Switch-on/Switch-off Option. |
| Battery Continuous Use | 450 Hours Maximum,Dependent On Switch-on/Switch-off Option |
| Weight Without Shank | 250 g (8.81 oz) |
| Operating Range | Up to 15 m (49.2 ft) |
| Principal Application | Workpiece inspection and job set-up on machining centres and multi-tasking machines |
| Transmission Type | Frequency hopping spread spectrum (FHSS) radio Radio frequency 2400 MHz to 2483.5 MHz |
| Compatible Interfaces | RMI and RMI-Q |
| Recommended Styli | Ceramic,lengths 50 mm (1.97 in) to 150 mm (5.91 in) |
Feature
| Brand | Renishaw |
| Sealing | IPX8 (EN/IEC 60529) |
| Battery Standby Life | 290 Days Maximum,Dependent On Switch-on/Switch-off Option. |
| Battery Continuous Use | 450 Hours Maximum,Dependent On Switch-on/Switch-off Option |
| Weight Without Shank | 250 g (8.81 oz) |
| Operating Range | Up to 15 m (49.2 ft) |
| Principal Application | Workpiece inspection and job set-up on machining centres and multi-tasking machines |
| Transmission Type | Frequency hopping spread spectrum (FHSS) radio Radio frequency 2400 MHz to 2483.5 MHz |
| Compatible Interfaces | RMI and RMI-Q |
| Recommended Styli | Ceramic,lengths 50 mm (1.97 in) to 150 mm (5.91 in) |
Description
Smallest frequency hopping radio spindle
The RMP40 is the smallest frequency hopping radio spindle probe in the world. Operating within the globally recognised 2.4 GHz ISM band, the RMP40 is suited for operation on machines of all sizes.
The robust transmission protocol and small body make the RMP40 the ideal choice for multi-tasking applications where the line-of-sight between probe and interface cannot always be maintained.
Features and benefits
- Proven kinematic design.
- Secure frequency hopping spread spectrum (FHSS).
- Globally recognised 2.4 GHz waveband – compliant with radio regulations in all major markets.
- Ultra-compact design.
- 1 μm 2σ repeatability.
