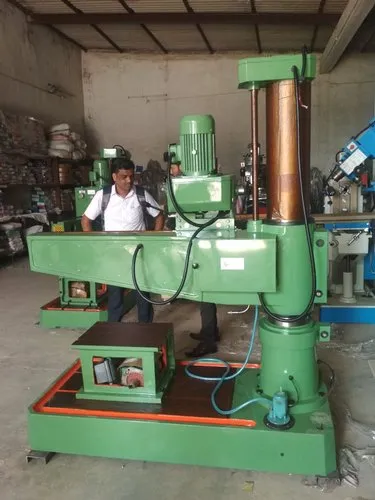

Radial Drilling Machine Spindle Travel: 214 Mm Drilling Capacity: 32 Mm
| Drilling Capacity | 32 mm |
| Spindle Travel | 214 mm |
| Number of Spindle Speed | 8 Speed |
| Diameter of Column | 165mm |
| Main Motor Power | 1 HP |
| Elevating Motor Power | 900 kg |
| Type of Spindle Bore | M-T4 mm |
| Drill Head Motor Power | 0.5 HP |
| Floor Space Occupied | 762x1295 mm |
| Lifting Bee Belt | A-32 |
| Machine Height | 1930 MM |
| Net Belt | B-48 |
| Spindle Nose Of Base | 800 mm ( Max Dist) |
| Material | MS |
| Diameter of Ram | 72 mm |
| Machine Area of Base | 1300x753x171 mm |
| Spindle Centre Of Column | 835 mm |
| Size of Box Table | 290x290x375 mm |
Feature
| Drilling Capacity | 32 mm |
| Spindle Travel | 214 mm |
| Number of Spindle Speed | 8 Speed |
| Diameter of Column | 165mm |
| Main Motor Power | 1 HP |
| Elevating Motor Power | 900 kg |
| Type of Spindle Bore | M-T4 mm |
| Drill Head Motor Power | 0.5 HP |
| Floor Space Occupied | 762x1295 mm |
| Lifting Bee Belt | A-32 |
| Machine Height | 1930 MM |
| Net Belt | B-48 |
| Spindle Nose Of Base | 800 mm ( Max Dist) |
| Material | MS |
| Diameter of Ram | 72 mm |
| Machine Area of Base | 1300x753x171 mm |
| Spindle Centre Of Column | 835 mm |
| Size of Box Table | 290x290x375 mm |
