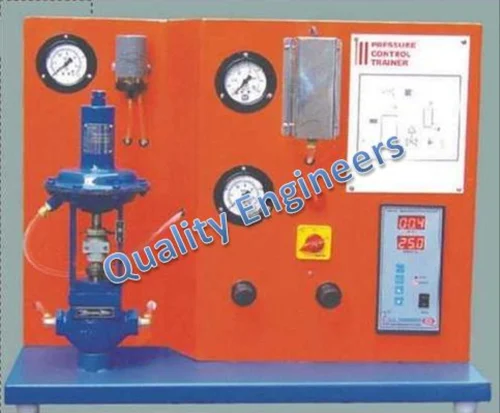

Pressure Control Trainer
| Brand | Quality Engineers |
| Usage | Industrial, Laboratory |
| Process Tank Capacity | 1.5 Litres |
| I/P Converter Input | 4-20ma |
| Process Tank Material | Stainless Steel |
| I/P Converter Output | 3-15 Psig |
| Interfacing Unit | For Input-Output Communication with Auto/Manual Facility |
| Instruction Manual | An english instruction manual will be provided along |
| Software | For Experimentation, PID Control, Data Logging, Trend Plot |
| Micro-Processor Controller | PID Setting, Auto Tuning, Fully Programmable With Serial Communication |
| Electricity Supply | 1 Phase, 220 V AC |
| Piping | PU Piping |
| Process Tank | Material Stainless Steel, Capacity 1.5 Ltrs. Powder Coated |
| Pressure Transmitter | Range 0-5 Bar Type Strain Gauge, Output 4-20 Ma |
| Control Valve | Compatible Capacity with Pneumatic Actuator |
| I/P Converter | Input 4-20ma, Output 3-15 Psig |
| Pressure Gauge | Bourdon Type, 0-2 kg/cm2 , 0-7 kg/cm2 |
| Pressure Regulator | 0-2 kg/cm2 |
| Compressed Air Supply | 1 Cmh At 6 Bar |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Feature
| Brand | Quality Engineers |
| Usage | Industrial, Laboratory |
| Process Tank Capacity | 1.5 Litres |
| I/P Converter Input | 4-20ma |
| Process Tank Material | Stainless Steel |
| I/P Converter Output | 3-15 Psig |
| Interfacing Unit | For Input-Output Communication with Auto/Manual Facility |
| Instruction Manual | An english instruction manual will be provided along |
| Software | For Experimentation, PID Control, Data Logging, Trend Plot |
| Micro-Processor Controller | PID Setting, Auto Tuning, Fully Programmable With Serial Communication |
| Electricity Supply | 1 Phase, 220 V AC |
| Piping | PU Piping |
| Process Tank | Material Stainless Steel, Capacity 1.5 Ltrs. Powder Coated |
| Pressure Transmitter | Range 0-5 Bar Type Strain Gauge, Output 4-20 Ma |
| Control Valve | Compatible Capacity with Pneumatic Actuator |
| I/P Converter | Input 4-20ma, Output 3-15 Psig |
| Pressure Gauge | Bourdon Type, 0-2 kg/cm2 , 0-7 kg/cm2 |
| Pressure Regulator | 0-2 kg/cm2 |
| Compressed Air Supply | 1 Cmh At 6 Bar |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Description
The setup consists of a process tank in which compressed air enters through a Pneumatic Control Valve. The pressure transmitter is fitted on the process tank. The air pressure in process tank is sensed by the transmitter and communicated to the digital indicating controller. This measured variable is compared with the set point by controller and output is generated and given to i/p converter, which in turn supply the 3- 15 psig pressure to vary the opening of the pneumatic control valve to eliminate the error observed. As the opening of pneumatic control valve varies, the pressure in the process tank gets effected. This process goes on until the set point target is achieved. A ball valve is also provided in the process tank to disturb the system and to observe the effect of disturbance. These units along with necessary piping are supported in a well- designed housing and are fixed on base plate.The present set-up is completely computerized controlled. The digital indicating controller has a facility to interface the system with computer which enables to change the PID parameters using computer. The educational software and data-logging package has been developed for unit. The software environment base is of lab view of national instruments, USA. This software is compatible to interfacing unit designed by k.C. Engineers. This software package provides a comprehensive educational software environment within which the PID investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software.
