Precise Gray Revolving Turret Heads
| Color | Gray |
| Packaging Type | Box |
| Material Grade | Steel |
| Length | Customize |
| Finishing | Precise |
| Material | Steel |
| Brand | OMG SRL |
| Frequency | indexing time 1/6 of rotation sec 0.9,1. 1.1,1,5 as per requirment |
| Voltage | According to specifications |
| Dimension A | Customize |
| Maximum Torque | 800 Nm |
| Usage/Application | Milling,Drilling,Tapping,Reaming,as per required machining |
| Hydraulic Pressure | According to specifications |
| Maximum Power | 4 to 16 Kw |
| Model Name/Number | HT 160,HT 200,HT 250,HT 360 |
| Shape | 6-8-12 Spindles |
| Minimum Order Quantity | 1 Number |
Feature
| Color | Gray |
| Packaging Type | Box |
| Material Grade | Steel |
| Length | Customize |
| Finishing | Precise |
| Material | Steel |
| Brand | OMG SRL |
| Frequency | indexing time 1/6 of rotation sec 0.9,1. 1.1,1,5 as per requirment |
| Voltage | According to specifications |
| Dimension A | Customize |
| Maximum Torque | 800 Nm |
| Usage/Application | Milling,Drilling,Tapping,Reaming,as per required machining |
| Hydraulic Pressure | According to specifications |
| Maximum Power | 4 to 16 Kw |
| Model Name/Number | HT 160,HT 200,HT 250,HT 360 |
| Shape | 6-8-12 Spindles |
| Minimum Order Quantity | 1 Number |
Description

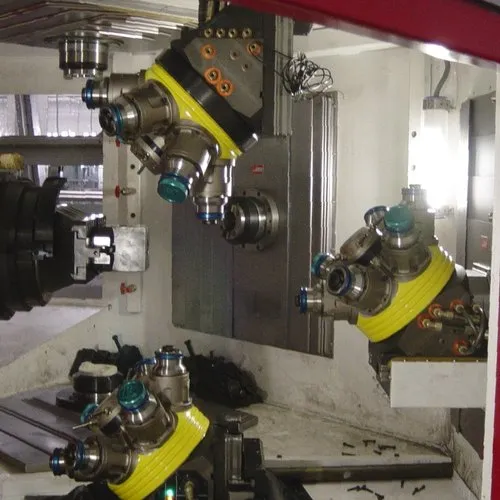

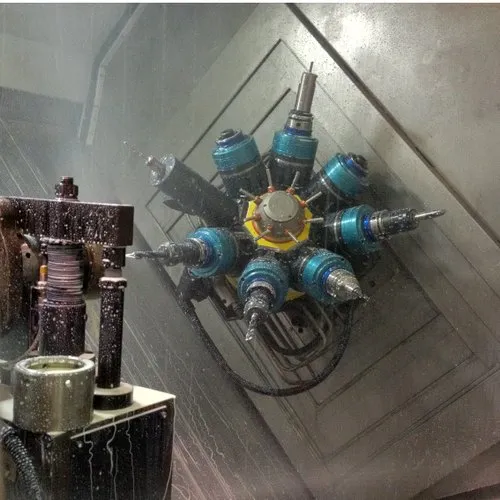

Turret head made in steel and cast iron.
Spindles unit with precision bearing.
Spindles with different tool connections (HSK, Komet, DIN55058, etc.) which can be interchanged on the same turret.
Spindles directly engaged with drive output to exploit power to the full.
Hydraulic Hirth crown gear locking-release system.
Single drive rotates both turret and spindles.
Two-way turret rotation for quicker retrieval of the spindle needed for the next process.
Independent coolant for each spindle.
Coolant can be passed throught centre of spindle.
Lubrication by grease or oil-air mixture.
Turret pressurized with air.
Single connector for data exchange between turret and cnc.
On turret heads you can use fixed multispindle head, angle head, spindle speeders, recessing spindle.
