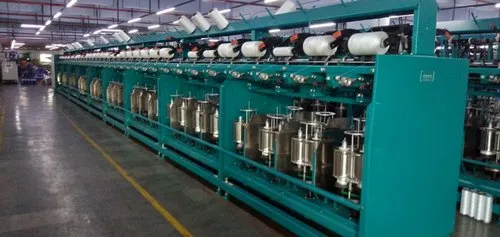

PP Filament Yarn Twister

incl. GST

Technology : Single Step S/Z Twisting Upto 3 Ply

Products suitable to make : 210/3, 300/2, 300/3, 450/3, 600/2, 900/2, 900/3, 1200/2, 1200/3, 3000/3, 3000/4, 4000/3

Major Applications : Sewing Thread, Embroidery Yarn, Plyed Yarn, Stitch Yarn,Carpet Yarn, Quilting Yarn, Salvage yarn, Tyre cord, Fishnet yarn, Medical Stitch Yarn, Footwear , Industrial Thread, Safety Harness yarn, V Belt yarn

Suitable Yarn : Polyester , PP, Nylon Or Any Other Filament Yarn
Additional Information

Delivery Time 8 to 10 week

Feature
Machine Type Automatic
Size 10 Section
Usage/Application Sewing Thread,Embrodery Yarn,Plyed Yarn,Stitch Yam
Yarn Type PP / Poly / Nylon
Description

Technology : Single Step S/Z Twisting Upto 3 Ply

Products suitable to make : 210/3, 300/2, 300/3, 450/3, 600/2, 900/2, 900/3, 1200/2, 1200/3, 3000/3, 3000/4, 4000/3

Major Applications : Sewing Thread, Embroidery Yarn, Plyed Yarn, Stitch Yarn,Carpet Yarn, Quilting Yarn, Salvage yarn, Tyre cord, Fishnet yarn, Medical Stitch Yarn, Footwear , Industrial Thread, Safety Harness yarn, V Belt yarn

Suitable Yarn : Polyester , PP, Nylon Or Any Other Filament Yarn
Additional Information

Delivery Time 8 to 10 week
Related Products
Induction Furnace

An induction furnace is an electrical furnace in which the heat is applied by induction heating of metal. The advantage of the induction furnace is a clean, energy-efficient and well-controllable melting process compared to most other means of metal melting. Most modern foundries and Steel Plants uses this type of furnace and now also more iron foundries and Steel Plants are replacing cupolas with induction furnaces to melt cast iron, as the former emit lots of dust and other pollutants. Induction furnace capacities range from less than one kilogram to one hundred tones capacity and are used to melt iron and steel, copper, aluminum and precious metals.

Interested in this product?Get Latest Price from the seller

Con

...
Mild Steel Guardrail Roll Forming Machine, For Industrial

Guardrail Roll Forming Machine can Produce a variety of guard rails which is Mostly used in high way Road. Produced guard rails are all in high quality, Durability, Long lasting Life and they are also easy to be installed. One production Machine can produce products of a wide range of specifications, so you will surely get Profile a lot.

Specifications:


  • D coiler 10 ton cap.
  • Punching press 100 tone
  • Entry Gate with
  • Roll Forming Line with 16 station , 8 Gear Boxes & 15 H.P. electrical.
  • Control Panel semi auto
  • Cutting Unit (Hydro.)


Technical Specifications:


  • Maximum sheet width that can be formed : 850 mm
  • Maximum sheet thickness in CRCA Strips that can be formed : 5 mm(M.S.)
  • Horizontal distance between shafts : 500mm
  • Number of forming stations : 16 nos.
  • Vertical station : 12 nos.
  • Total HP for Line : 23
  • Speed of the machine : 3 to 4 mt/minit
  • Size of machine : 8500 x 1600 x 1000 mm


Mandrel Uncoiler:


  • Coil weight : 10MT Max
  • Coil width : 400 MM
  • Coil bore : 850 MM min, 1100 MM max dia.
  • Mandrel movement : Hydro.
  • Back Tension : Manually adjusted


Punching press:


  • 100 tone Hydro. press
  • 5 HP
  • Oil tank 150 liter


Entry Gate:


  • Entry gate will be provided for movement of sheet to roll former.


Main Base:


  • The main base is MS fabricated structure and adequately ribbed to minimize the distortion. It is accurately machined on top and bottom surfaces the threaded holes are made on the bed for positioning the stands.


Mill stands (Station):


  • The stands are mounted on the bed of the machine the line alignment can be easily done due to guide ways arranged on the bed of the machine. Each forming head consists of a fixed housing and sliding type out board housing. The mill stands will be arranged to locate shafts mounted on taper bearings. For the top shafts the bearings are housed in the cartridge type bearing blocks. The bottom shaft bearings are located in the bored machined in the housings. The bottom arbors are fixed in position whereas the top arbors along with cartridge blocks could be raised or lowered in vertical guides machined in housings.


Roll shafts:


  • The roll shafts dia. 70 mm will be manufactured from quality steel and will be keyed to locate tooling.


Drive:


  • The drive to the roll former will be by means of a gear box system. The main drive will be provided by means of 15 HP motor


Tooling:


  • One set of Tooling with EN31 / D3 grade will be from imported material suitable for your machine as standard supply. The same is involved in operations like rough machining, keyway, rough profiling, profile machining trial and hardening ,bore grinding and inspection with final template for above.


Cutting Unit (Hydro):


  • Hydraulically operated power pack along with cutting die with 3 HP electrical.
...
